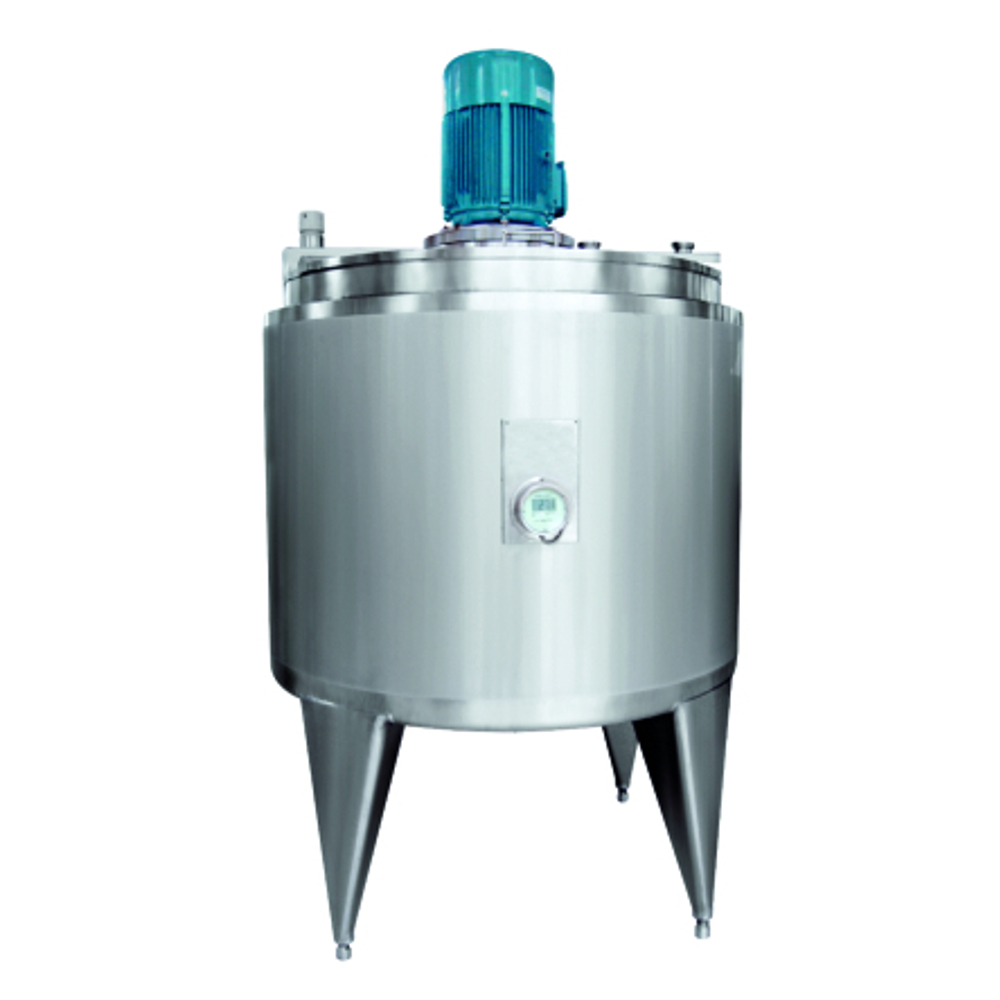

High Shear Emulsification Tank

This high shear emulsification tank combines mixing, emulsifying, homogenizing, dissolving and size reduction in a single vessel. The rotor directs material toward the stator teeth, where shear and impact perform the mixing action. Square and round tank forms are available for dairy, beverage, juice and food applications.

Key Features

High-speed rotor-stator emulsifying head.
The rotor moves material from its center toward the stator and through the stator teeth.
Shearing, impact and size reduction take place between the rotor and stator.
Combines mixing, emulsifying, homogenizing, dissolving and size-reduction functions.
Square and round tank forms are available.
Listed sizes range from 1000 to 5000 L, with 1750 r/min specified for each listed size.

Applications

Dairy products
Beverages
Fruit juice
Food processing

Technical Specifications

Product Specifications
Effective volume (L)	Tank diameter × body height (mm)	Total height (mm)	Insulation thickness (mm)	Motor power (kW)	Blending speed (r/min)
1000	1060×1220	2950	60	7.5	1750
2000	1340×1500	3400	60	11	1750
3000	1410×2000	3900	60	15	1750
4000	1620×2000	4030	60	18.5	1750
5000	1810×2000	4130	60	22	1750

Information for Equipment Selection

Provide the formulation, working volume, viscosity and feed material condition.
Describe the mixing, emulsification or dissolving objective and required processing time.
Specify the preferred tank form, temperature requirements, connections and installation space.

Send your product requirements and production layout to discuss the equipment configuration.

Frequently Asked Questions

How does the emulsifying head work?

The rotor moves material from the center toward the stator teeth. Shear, impact and size reduction between the rotor and stator perform the emulsifying and mixing action.

What operations can the tank combine?

The listed functions are mixing, emulsifying, homogenizing, dissolving and size reduction. The intended duty and formulation are needed when selecting the configuration.

Which tank forms and sizes are listed?

Square and round tank forms are available. The parameter table lists 1000, 2000, 3000, 4000 and 5000 L sizes, each with a listed speed of 1750 r/min.
