Can one CIP programme be used for every product?

Assess the programme for residue, circuit, materials and operating conditions. Define and approve the procedure for the intended application.

Does a CIP system clean the entire canning plant?

Its scope covers circuits and equipment confirmed as compatible with the agreed duty. Other equipment may require separate methods.

What is needed to compare quotations?

Use the same circuit list, return-path information, utilities, monitoring requirements and scope boundaries.

CIP Cleaning Systems for Liquid Process Circuits

Detailed Equipment Introduction

Gain in-depth insights into CIP Cleaning System for Liquid Process Circuits equipment’s working principles, application scenarios, and technical highlights.

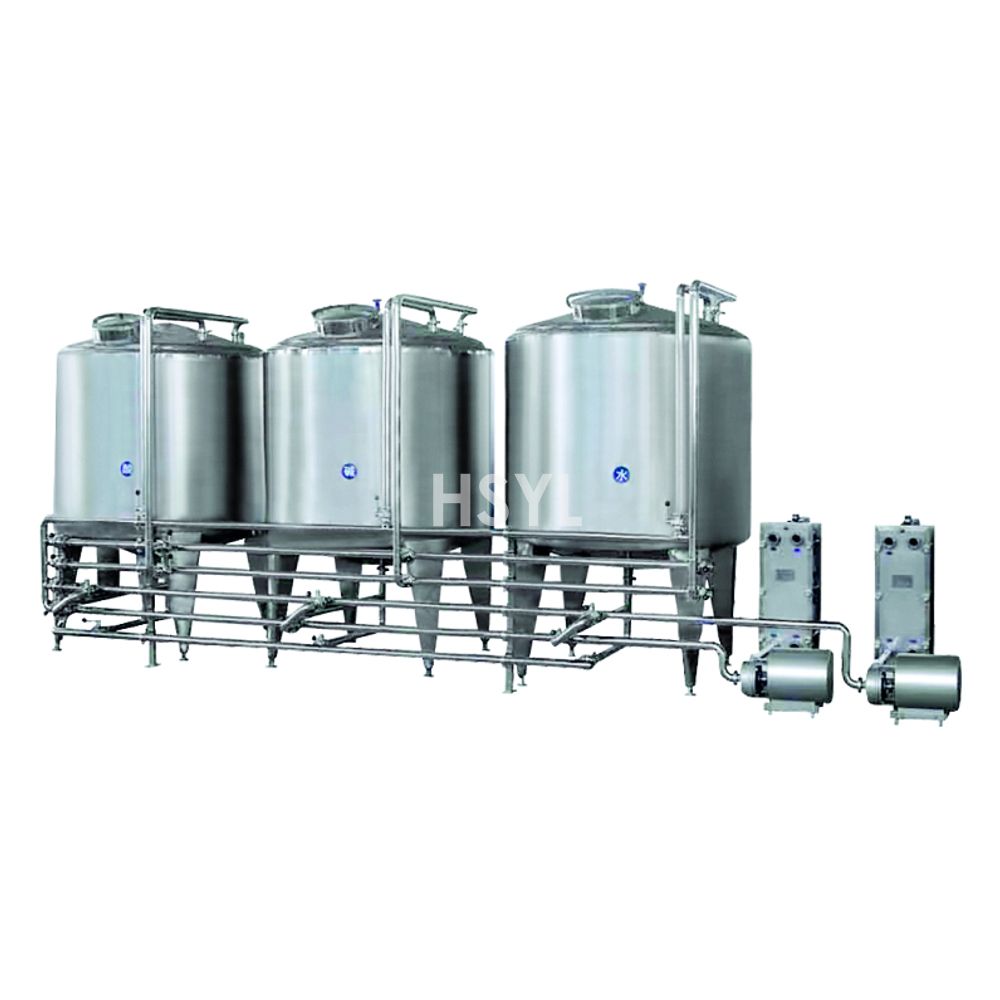

CIP Cleaning System for Liquid Process Circuits(图1) — Catalogue equipment reference. Confirm the quoted configuration and project interfaces.

A clean-in-place system is specified for defined process circuits rather than for a factory name alone. Start by listing the tanks, pipelines and equipment to be cleaned, then identify their supply and return paths. Review the cleaning system, connected equipment and approved procedure as one project.

Define the cleaning boundary

The relevant application is a compatible liquid-processing circuit, such as liquid preparation, transfer or a filling supply circuit. Not every machine in a canning plant belongs in the same CIP loop. Identify equipment requiring dismantling or separate cleaning in the project scope.

For each circuit, record product residue, materials, piping route, connections, cleaning devices and return arrangement. Mark the boundary on the process drawing so that responsibility is clear for each branch and component.

System elements to review

Element	Project review
Liquid storage	Required cleaning liquids, tank arrangement, segregation and handling.
Supply and return	Pumps, connected circuits, return route and drainage.
Heating and utilities	Required cleaning duty and site utilities.
Valves and distribution	Circuit selection, isolation and operating sequence.
Measurement	Temperature, conductivity, level and other agreed monitoring requirements.
Control and records	Approved programmes, operator actions, alarms and records.

Agree the cleaning procedure separately

The sequence depends on residue, equipment, cleaning chemicals and operating conditions. State who approves the procedure and who verifies the result. A catalogue sequence should not be used as a universal operating instruction for different recipes and circuits.

Identify material compatibility, chemical handling, inspection access and waste-disposal interfaces. These requirements form part of the site-specific cleaning plan.

Connections and handover requirements

Define CIP supply, return, water, heating utility, electricity, drain and control interfaces. Confirm which equipment can receive the agreed cleaning duty and how the circuit is isolated from production. Include the limiting return path in the engineering review.

Provide a circuit list and a drawing showing supply and return routes.
List equipment and cleaning devices within each circuit.
Agree controls between the cleaning system and connected machines.
Specify documents and recorded information required at handover.

Information for a CIP system enquiry

Products, residues and production or changeover schedule.
List of tanks, pipelines and machines to be included.
Drawing, circuit dimensions and supply or return elevations.
Existing procedure and chemical compatibility requirements.
Available water, heating utilities, electricity and drainage.
Required automation, monitoring, records and validation responsibilities.
Installation space and destination country.

Discuss the equipment duty

Use the canning production line overview to describe the wider project. Send the process information for review with the equipment duty, operating conditions and connection requirements.
