Commercial Economic Steamer Cabinet

Detailed Equipment Introduction

Gain in-depth insights into Economic Steamer Cabinet equipment’s working principles, application scenarios, and technical highlights.

Product Overview

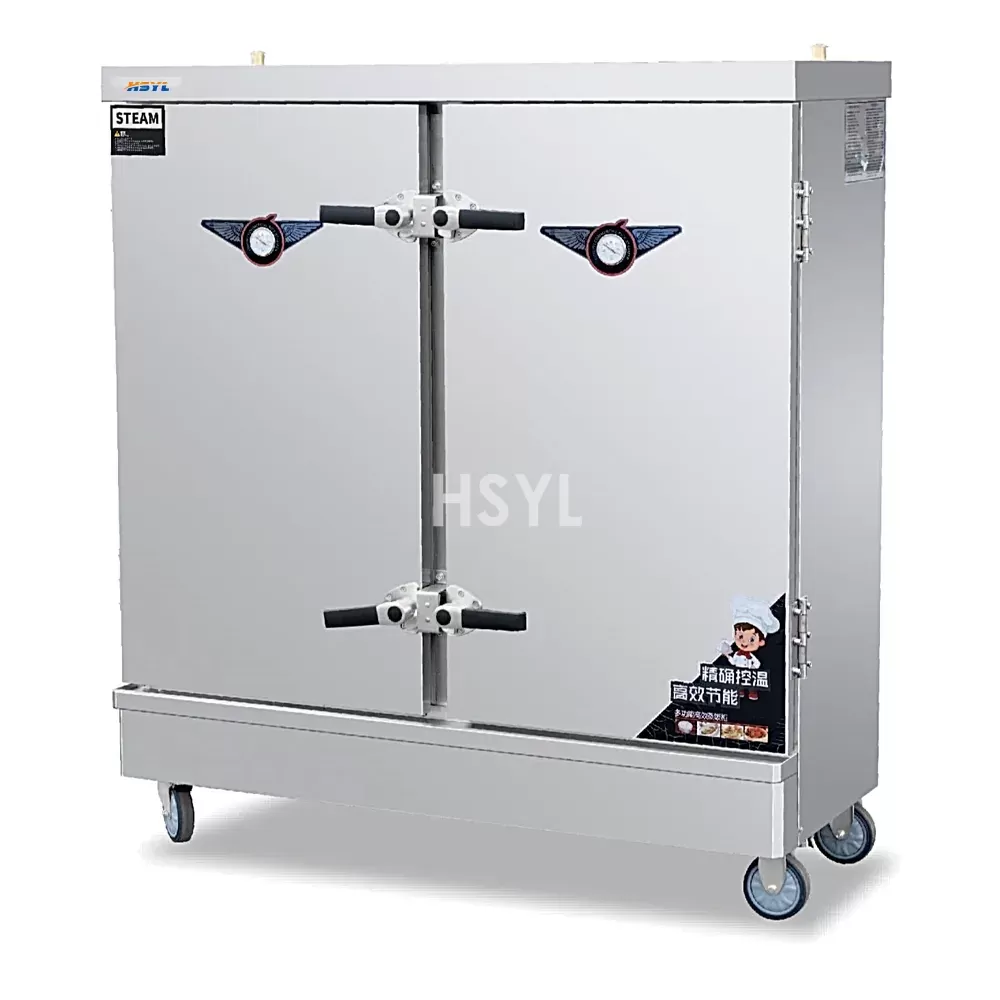

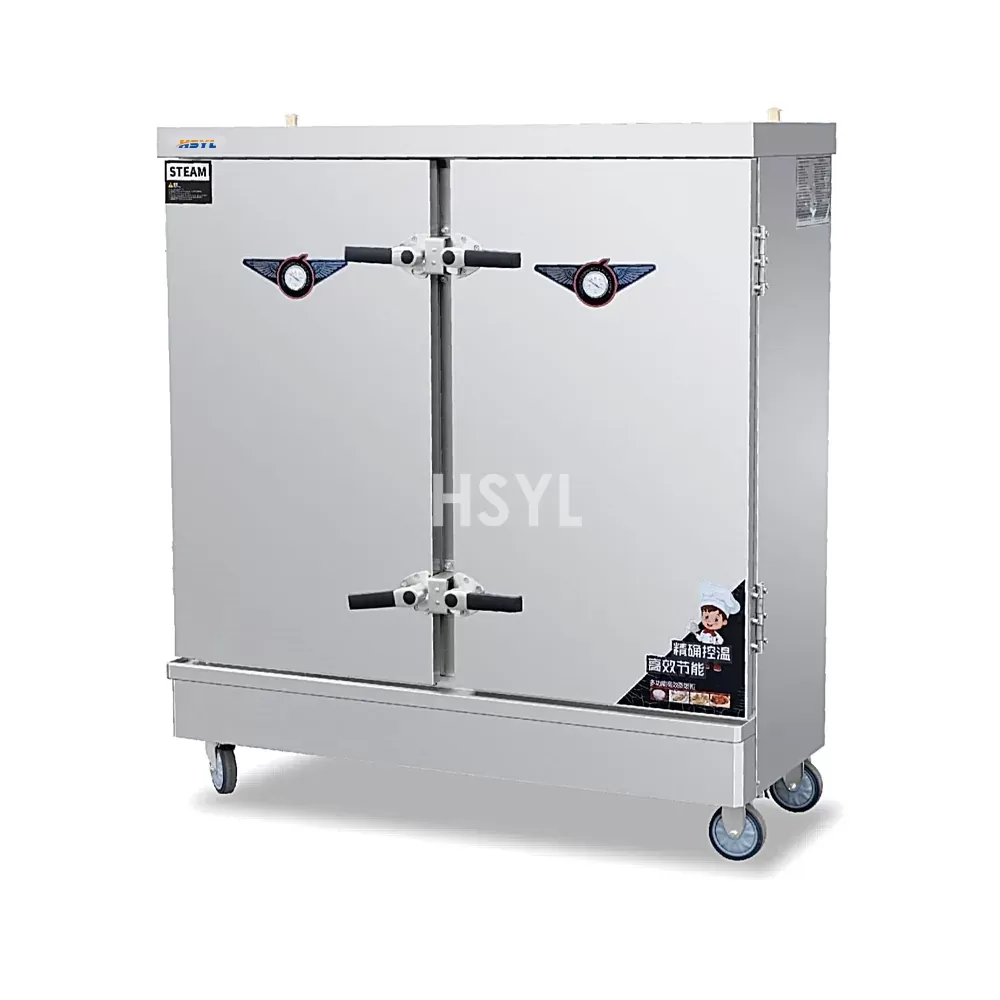

The EBJ-DRS Economic Steamer Cabinet is a stainless-cabinet commercial kitchen equipment steamer intended for the batch-cooking or steam-cooking stage of a commercial kitchen or central-kitchen workflow. The product family is designed for tray-based steaming of rice, dim sum, seafood and vegetables. Tray count, cabinet orientation, steam source, electrical supply and batch load are the main variables that determine the correct model. In the production flow, it follows raw-product preparation and tray or trolley loading, then precedes portioning, hot holding or rapid cooling. Its procurement value is a defined batch-steaming interface; usable load, tray or trolley format, steam source, utilities, control level and cabinet configuration should be specified for the project.

Applications

Raw material or load: Rice, dim sum, steamed bread and similar tray-loaded foods available for this product family.
Final product or process outcome: steam-cooked tray loads produced to the buyer's validated recipe and food-safety limits.
Product or load dimensions: cabinet external dimensions 695*615*815, 695*615*1325, 1000*815*1525, 495*815*1495, 1580*815*1800, 1580*815*1525, 695*615*985, 695*615*1495, 1390*615*1525, 695*615*1155, 1000*815*1800, 1420*1025*1590, 1390*615*1355; tray dimensions 4, 8, 36, 6, 20, 45, 24, 48, 10, 12, 30.
Packaging or load format: unpackaged food in compatible steam trays, pans, racks or trolleys; sealed packs require a separately validated process.
Factory type: commercial kitchens, central kitchens, institutional catering sites and compatible food-service operations.

How the Machine Works

Water is heated by the selected electric or steam-supply arrangement. Steam fills the insulated cooking chamber, transfers heat to food held on trays, and condenses during the cycle. The operator loads trays, closes and seals the door, selects the cycle where controls are fitted, then unloads only after steam has safely dissipated.

Feeding: load the specified food, tray or trolley format outside the hot chamber.
Positioning: place trays in the designated supports or roll the compatible trolley fully into position, then close and seal the door.
Processing action: generate or admit steam so heat transfers to the load for the validated recipe.
Control or detection: monitor the selected model timer, temperature, water level, burner, steam or alarm functions using the functions supplied with the selected model.
Discharge: isolate the heat or steam source, allow steam to dissipate safely, then remove the trays or trolley for the next process step.
Safety logic: stop loading or unloading when steam, door sealing, water supply, ignition or other required interlocks are abnormal; abnormal loads are handled according to the site's operating procedure.

Key Features

Feature: Insulated cabinet construction intended to reduce heat loss during batch steaming. Operating effect: limits heat exchange through the cabinet panels during operation. Buyer relevance: compare recovery, route time and utility demand under your planned load.

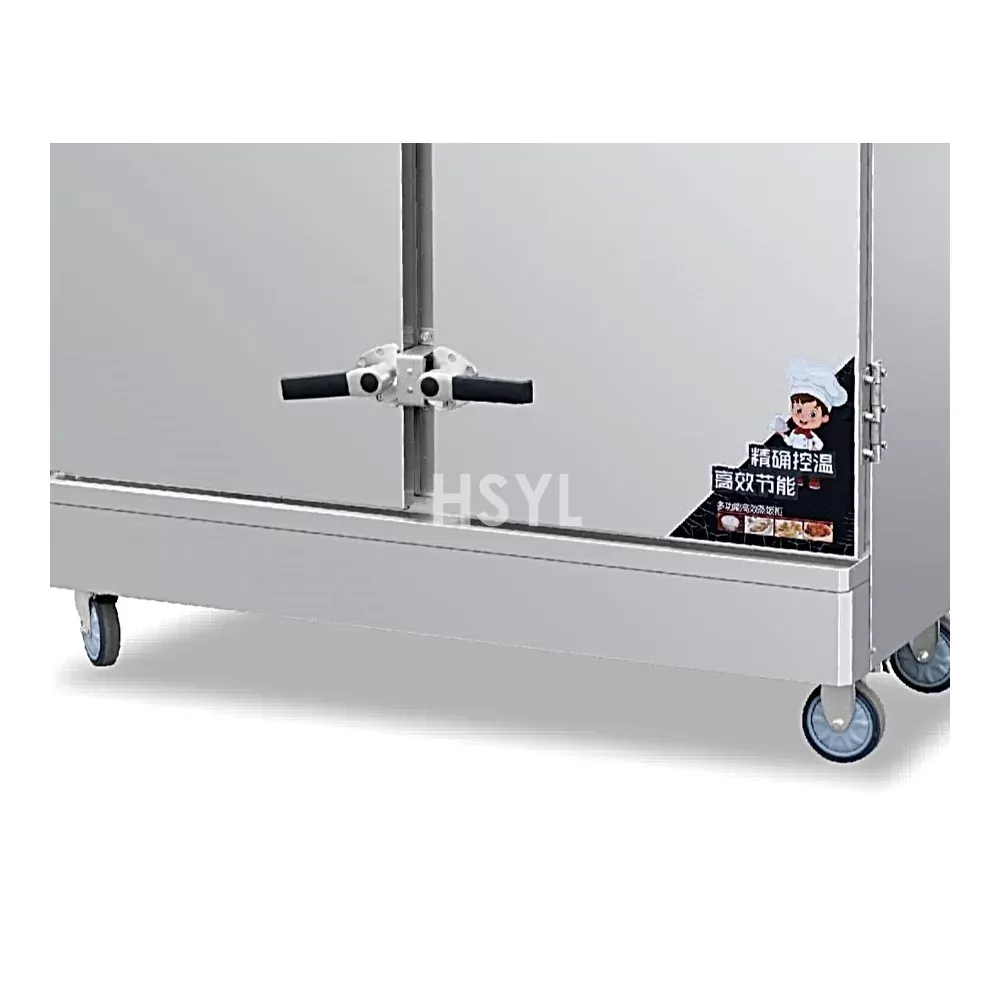

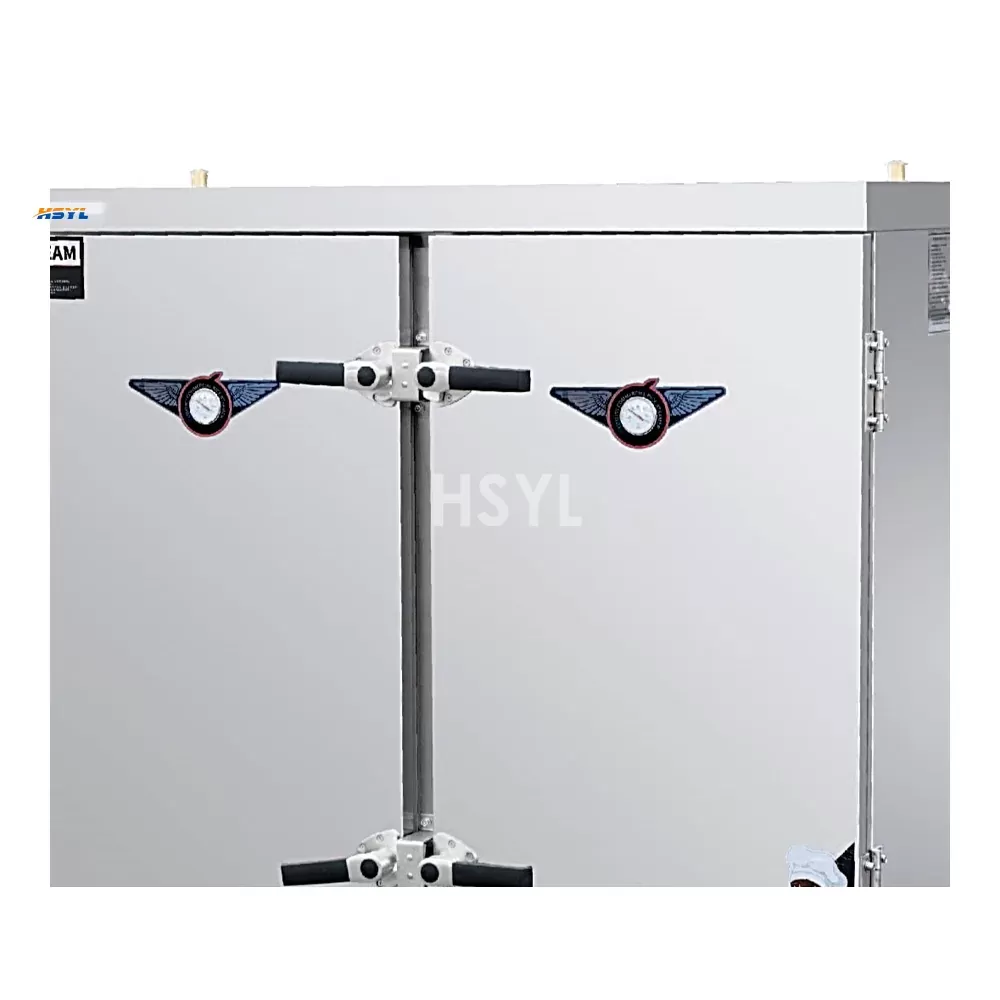

Feature: Door sealing, reinforced hinges and cabinet supports included in the product design. Operating effect: controls access and limits unwanted air, heat or steam leakage when properly maintained. Buyer relevance: check door clearance, opening frequency, seal replacement and cleaning access.
Feature: Tray-based loading that gives buyers a clear capacity and workflow selection point. Operating effect: defines load support, spacing and usable internal capacity. Buyer relevance: match the actual load dimensions and cleaning procedure before choosing a model.

Technical Specifications

Specifications

Model	Trays	Cabinet Size(mm)	Rated Power	Rated Voltage	Capacity	Water Input Pressure	Circuit Breaker	Steam Inlet	Tray Size(mm)	Vapor Pressure	Net Weight
EBJ-DRS-4	4	695615815	9 kW	3~380V or 2~220V	4KG/Tray	≤4kPa	Y-shaped connection method	DN 20mm	40060050	≤0.02MPa	27KG
EBJ-DRS-6	6	695615985									30KG
EBJ-DRS-8	8	6956151155									34KG
EBJ-DRS-10	10	6956151325									39KG
EBJ-DRS-12	12	6956151495	12kW	3~380V							46KG
EBJ-DRS-12V (Vertical type)	12	4958151495	12kW								44KG
EBJ-DRS-20	20	13906151355	12kW*2								57KG
EBJ-DRS-24	24	13906151525	12kW*2								78KG
EBJ-DRS-24V (Vertical type)	24	10008151525	12kW*2								84KG
EBJ-DRS-30V (Vertical type)	30	10008151800	15kW*2								120KG
EBJ-DRS-36V (Vertical type)	36	15808151525	12kW*3								145KG
EBJ-DRS-45V (Vertical type)	45	15808151800	15kW*3								164KG
EBJ-DRS-48	48	142010251590	12kW*4								187KG

The table summarizes available models and technical specifications. HSYL can match the configuration to your capacity, utilities and workflow.

Hygienic Design and Food-Contact Materials

Stainless-steel cabinet surfaces and removable trays support routine cleaning. Check which surfaces are SUS304 food-contact parts, how condensate drains, whether corners are accessible, and which seals can be removed for cleaning. Do not use abrasive pads on finished panels.

Automation and Control Options

Loading is manual unless the selected model is paired with a trolley. Filling, timing and temperature-control functions vary by model and can be selected during quotation.

Integration into a Production Line

Place the steamer after raw-product preparation and tray loading, with safe space for unloading before portioning, hot holding or rapid cooling. Coordinate water, drain, steam or gas, electrical isolation, ventilation and floor loading with the kitchen layout. For multi-equipment projects, coordinate this unit with the commercial kitchen equipment solution.

Customization Options

Model size and usable load configuration
Voltage, frequency, phase and plug or isolator standard
Control functions matched to the selected configuration
OEM labeling and destination-market documentation
Tray, rack, trolley, steam-source and door configuration supported by the selected model

Model Selection Guide

Selection is limited by tray size, batch weight, product thickness, steam recovery between batches and site utilities. A cabinet steamer is not a substitute for a validated retort or pressure sterilizer.

Information Required for a Quotation

Raw material, food, utensil or load photos and representative samples as applicable
Final product specifications and acceptance criteria
Target batch capacity, hourly or daily throughput and operating hours
Food, tray, pan, rack, utensil or package dimensions
Packaging or load format, closure and orientation
Required automation, control, alarm and data functions
Voltage, frequency, phase and available utilities
Upstream and downstream equipment and interface conditions
Factory or kitchen layout with access and maintenance clearances
Destination country and local compliance requirements

Request a Technical Proposal

Share your capacity, product or load dimensions, site utilities and layout through the HSYL technical proposal request. Our team will recommend a suitable model and configuration.

Frequently Asked Questions

What is the main application of the EBJ-DRS Economic Steamer Cabinet?

=Rice, dim sum, steamed bread and similar tray-loaded foods available for this product family. Check the actual load dimensions, operating condition and duty cycle before selection.

How should buyers select a model in the EBJ-DRS family?

=Compare usable capacity, load dimensions, utilities, control functions, cabinet size and the upstream and downstream workflow. Contact our sales team for a detailed quotation.

Which utilities should be specified for the EBJ-DRS?

=The selected configuration uses electric steam generation or external steam connection depending on the selected model. Check destination voltage, frequency, phase, water, drain, gas, steam or ventilation requirements as applicable.

How should the EBJ-DRS be cleaned?

=Stainless-steel cabinet surfaces and removable trays support routine cleaning. Check which surfaces are SUS304 food-contact parts, how condensate drains, whether corners are accessible, and which seals can be removed for cleaning. Do not use abrasive pads on finished panels.

What is the main selection limitation for the EBJ-DRS?

=Selection is limited by tray size, batch weight, product thickness, steam recovery between batches and site utilities. A cabinet steamer is not a substitute for a validated retort or pressure sterilizer.

What determines the capacity of the EBJ-DRS Economic Steamer Cabinet?

=Usable capacity depends on tray or trolley size, food thickness, batch weight, steam recovery and the operating schedule. Select the model from the actual load rather than tray count alone.

How does a commercial steamer cabinet fit into a central kitchen workflow?

=Install it after ingredient preparation and tray loading, with safe unloading space before portioning, hot holding or rapid cooling. Coordinate water, drainage, power, steam or gas and ventilation with the kitchen layout.
