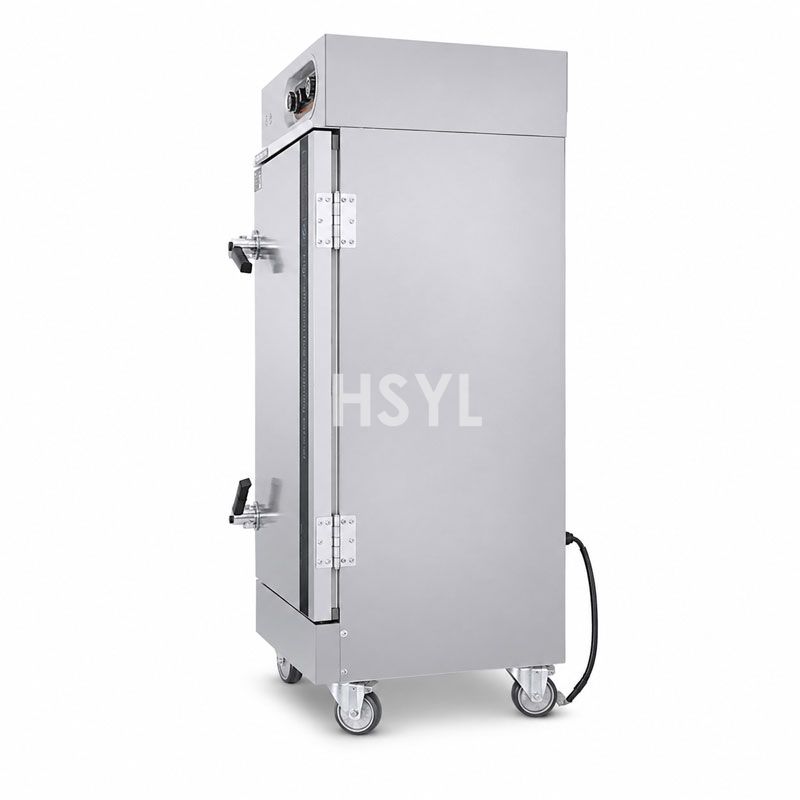

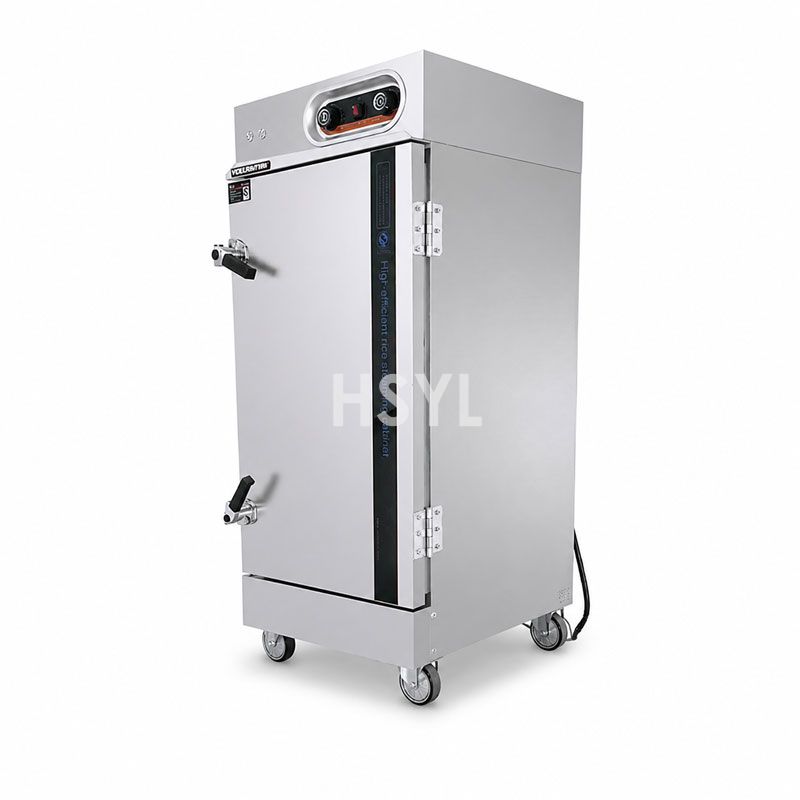

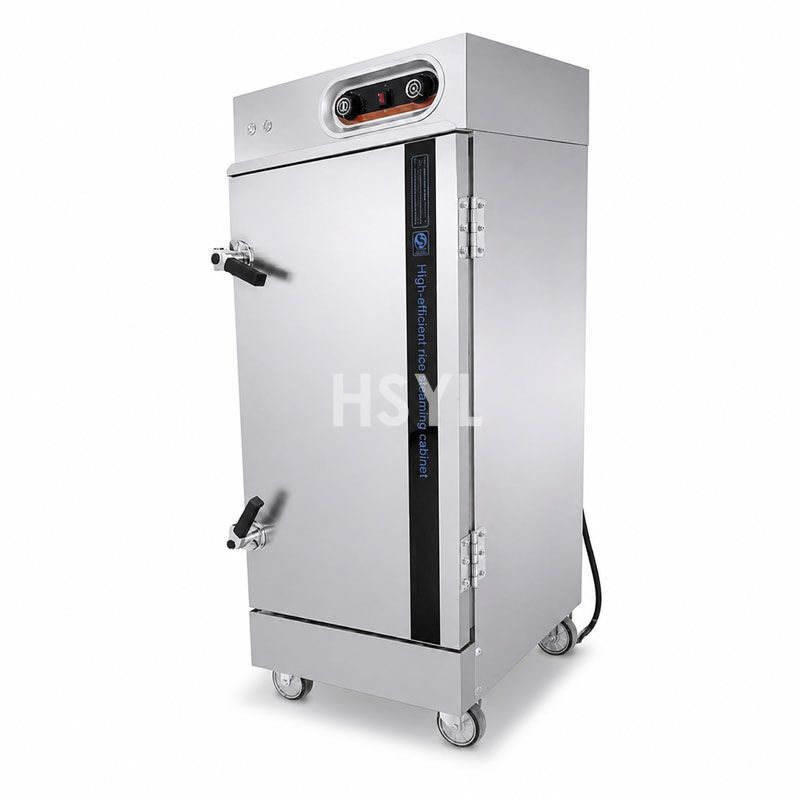

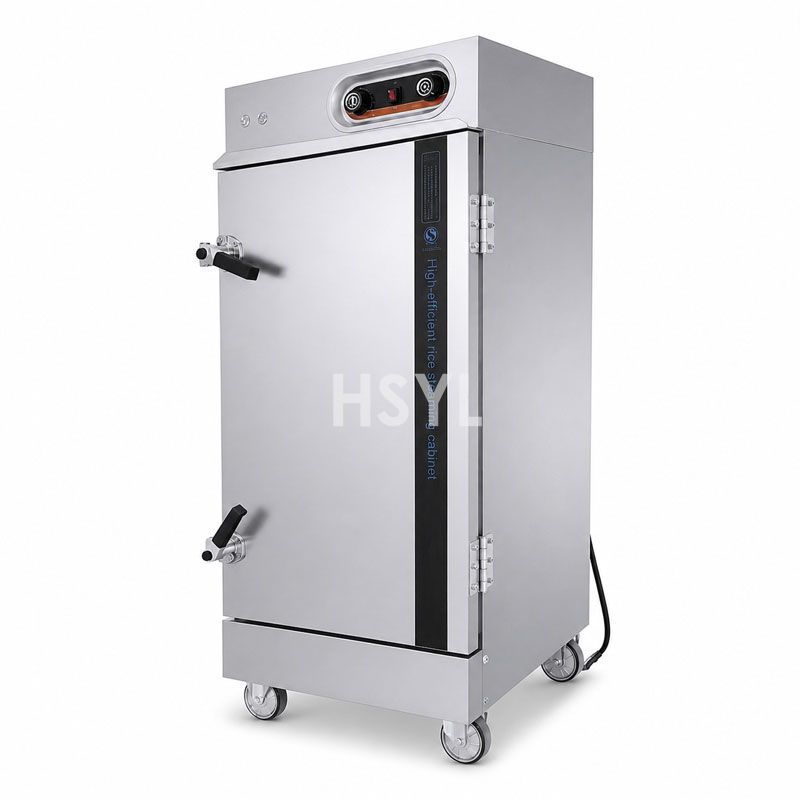

Engineering Automatic Steamer Cabinet | EAB-DRS Series 6-24 Trays | Commercial Electric Steamer with Autofill & Timer Control

Product Introduction

When you are selecting a steamer cabinet for a commercial kitchen where reliability matters more than interface sophistication, the choice often comes down to a simple question: do you need more automation features, or do you need the right automation features built into the hardware itself? Digital controllers offer programming flexibility, but they also introduce display failure points, sensor calibration drift, and operator training complexity. Mechanical controls, when engineered correctly, deliver repeatable results cycle after cycle with near-zero electronics maintenance. The Engineering Automatic Steamer Cabinet (EAB-DRS Series) from HSYL is designed around this principle — it embeds automation at the hardware level through an AUTOFILL water management system with power-off protection, an anti-dry-burning safeguard, and a rotating bidirectional timer & temperature controller that lets operators set both variables independently without navigating menu screens.

The EAB-DRS series covers six models from 6-tray countertop-scale units to 24-tray floor-standing workhorses, all sharing the same engineering-grade construction: overall foaming with a 3.5 cm insulation layer for thermal efficiency, SUS304 electric heating pipes capped with pure copper vapor outlets, a new multiple-airbag embedded silicone door seal, six-bolt large hinges rated for heavy-duty cycling, and dual supporting ribs on both cabinet sides to resist deformation under repeated loading. For kitchens evaluating their steamer options across the HSYL portfolio, the EAB-DRS sits between the manual-operation Economic Steamer Cabinet (EBJ-DRS) and the fully digital Automatic Steamer Cabinet, offering a middle path where confirmed hardware automation meets straightforward mechanical operation.

Technical Specification

Power Configuration Note: Models EAB-DRS-6/8/10 share a single 9 kW boiler and support both 3-phase 380V and single-phase 220V input (voltage customizable per export market). EAB-DRS-12 and EAB-DRS-24V use a single 12 kW boiler requiring 3-phase 380V. EAB-DRS-24 (standard horizontal type) employs a dual 12 kW boiler configuration (total 24 kW) for faster steam generation across its larger chamber volume.

Vertical Type: EAB-DRS-24V configures 24 trays in a vertical (tall/narrow) footprint (1000×850×1405 mm) versus the standard horizontal EAB-DRS-24 layout. Choose vertical when floor width is constrained but ceiling clearance permits taller equipment.

Working Process

1. Loading & Door Sealing. Place food items (rice, buns, dim sum, seafood, corn, potatoes, fish) onto 400×600×50 mm trays. Load trays into the cabinet chamber. Close door firmly — the multiple-airbag embedded silicone compression seal engages around the full door perimeter, creating a steam-tight chamber. The six-bolt large hinge maintains precise door alignment even under repeated daily open/close cycles.
2. AUTOFILL Activation & Heating. Initiate operation. The AUTOFILL system automatically manages water supply to the boiler reservoir. If water level drops below safe operating threshold during the cycle, the water-shortage detection triggers an immediate power-cut protection — the unit shuts down before dry-burning can occur, protecting the SUS304 electric heating pipes from damage. Heating elements bring water to boil; pure copper vapor caps channel steam evenly into the chamber.
3. Steaming Cycle Under Control. Set the rotating bidirectional timer (duration dial) and temperature controller (target temp dial) independently via the dual-axis rotary panel. At target temperature (~100°C at sea level), the chamber holds steady. Duration varies by item: steamed rice requires 20–40 minutes; dim sum and buns finish in 8–15 minutes; seafood cooks in 5–12 minutes. The 3.5 cm foamed insulation layer minimizes heat loss throughout the hold phase, reducing energy consumption per cycle compared to thinner-insulation designs.
4. Completion, Unloading & Reset. When the timer elapses, the cycle completes. Open door carefully allowing brief steam vent downward. Remove trays and transfer to plating or packaging station. The cabinet is immediately ready for the next load — no cooldown drain required between most cycles. For high-throughput operations running back-to-back shifts, the reinforced body with dual supporting ribs maintains dimensional stability even under continuous heat cycling.

Safety Interlock: The water-shortage then power-off protection is a hard-wired safety layer independent of the timer/temperature controller. Even if the operator sets an excessively long cycle time, the unit will cut power if boiler water depletes — this is not a software overrideable function but a physical protection mechanism built into the AUTOFILL circuit.

Applications

• Restaurant & Hotel Kitchens. Breakfast buffet steaming (rice, buns, dim sum), lunch/dinner protein steaming (fish, seafood, corn, potatoes). EAB-DRS-12 or EAB-DRS-24 handles peak-service volume for mid-to-large establishments. The bidirectional controller lets line cooks adjust timing quickly between menu items without reprogramming cycles.
• School, University & Institutional Canteens. High-volume batch steaming for student/staff meals. Rice steaming in bulk, vegetable preparation, pre-cooked item warming. The AUTOFILL safety system reduces supervision requirements during busy lunch rushes when staff attention is divided across multiple stations. EAB-DRS-10 or EAB-DRS-12 fits typical canteen throughput.
• Factory & Mining Area Cafeterias. Heavy-duty environments benefit from the reinforced cabinet body with supporting ribs and six-bolt hinges — construction tolerates rough handling better than lightweight designs. Electric operation (no open flame) meets underground mining safety regulations where gas-fired equipment is restricted.
• Central Kitchen Operations. Batch production of steamed items for distribution to satellite locations. EAB-DRS-24 (dual boiler) delivers maximum per-cycle output. The mechanical controller's simplicity reduces maintenance overhead compared to fully digital systems — fewer components to fail means higher uptime in production environments focused on downtime reduction strategies.
• High-Temperature Steam Sterilization. Beyond food steaming, the chamber operates as a sterilization unit for meal containers, tableware, tea sets, and kitchen tools. Steam at ~100°C under slight positive pressure (≤0.02 MPa) achieves sanitization without chemicals — valuable for establishments with strict hygiene protocols.
• Military & Troop Catering. Field-deployed or base kitchens where equipment ruggedness and operational simplicity are priorities. The mechanical bidirectional controller requires minimal training; AUTOFILL safety protects against operator error during high-tempo feeding operations.

Advantages

1. AUTOFILL with Hard-Wired Safety Protection. Unlike basic steamers requiring manual water level monitoring, the EAB-DRS AUTOFILL system manages boiler water automatically. The water-shortage then power-off protection cuts electricity to heating elements before dry-burning occurs — this is a physical interlock, not a software-dependent feature. Result: reduced fire risk, extended heating element life, and lower liability exposure for facility managers.
2. Bidirectional Timer & Temperature Controller. The dual-axis rotary control panel separates time and temperature into independent mechanical adjustments. Operators set duration on one dial and target temperature on the other simultaneously — no menu navigation, no button sequences, no LCD screen fogging in steam. Training time for new staff drops to minutes rather than hours. Mechanical dials maintain calibration accuracy indefinitely (no sensor drift).
3. 3.5 cm Foamed Insulation Layer. Overall foaming construction creates a uniform 3.5 cm insulation barrier around the entire chamber (not spot-applied insulation pads). This reduces radiant heat loss compared to thin-wall designs, translates to faster heat-up recovery after door opening, lowers ambient kitchen temperature contribution, and decreases per-cycle energy consumption.
4. Reinforced Heavy-Duty Construction. Three structural upgrades distinguish the EAB-DRS body from lighter-tier alternatives: (a) six-bolt large hinge distributes door load across more fastening points than standard 4-bolt hinges, reducing hinge fatigue over thousands of cycles; (b) dual supporting ribs on both cabinet sides resist flexural deformation when loaded to full tray capacity at elevated temperatures; (c) new multiple airbag door seal with embedded silicone maintains compression integrity longer than single-seal designs.
5. Dual-Voltage Flexibility on Mid-Range Models. EAB-DRS-6, EAB-DRS-8, and EAB-DRS-10 accept either 3-phase 380V or single-phase 220V electrical supply. This simplifies installation planning — the same model adapts to both industrial three-phase building wiring (factories, central kitchens) and standard commercial single-phase circuits (smaller restaurants, cafes) without internal reconfiguration or transformer add-ons.
6. Anti-Dry-Burning as Core Safety Architecture. Dry-burning (heating elements operating without water) is the #1 cause of steamer cabinet failure and fire hazard in commercial kitchens. The EAB-DRS addresses this at the design level: AUTOFILL + water-shortage power-off protection forms a redundant safety chain. Even if the AUTOFILL valve malfunctions, the low-water sensor triggers power cutoff before element damage occurs. This dual-layer approach exceeds basic single-sensor designs found on economy-tier units.

Value Angle: For a kitchen running 3+ steaming cycles daily over 5+ years, the combination of AUTOFILL safety (prevents catastrophic dry-burn events), mechanical controller longevity (no display replacement costs), and reinforced body (fewer hinge/door-seal service calls) typically yields lower total cost of ownership than a cheaper initial-purchase unit requiring more frequent maintenance intervention.
