Gain in-depth insights into Deluxe Fingerprint Resistant Steamer Cabinet — Premium Stainless Finish for Guest-Facing Kitchens equipment’s working principles, application scenarios, and technical highlights.
Product Introduction

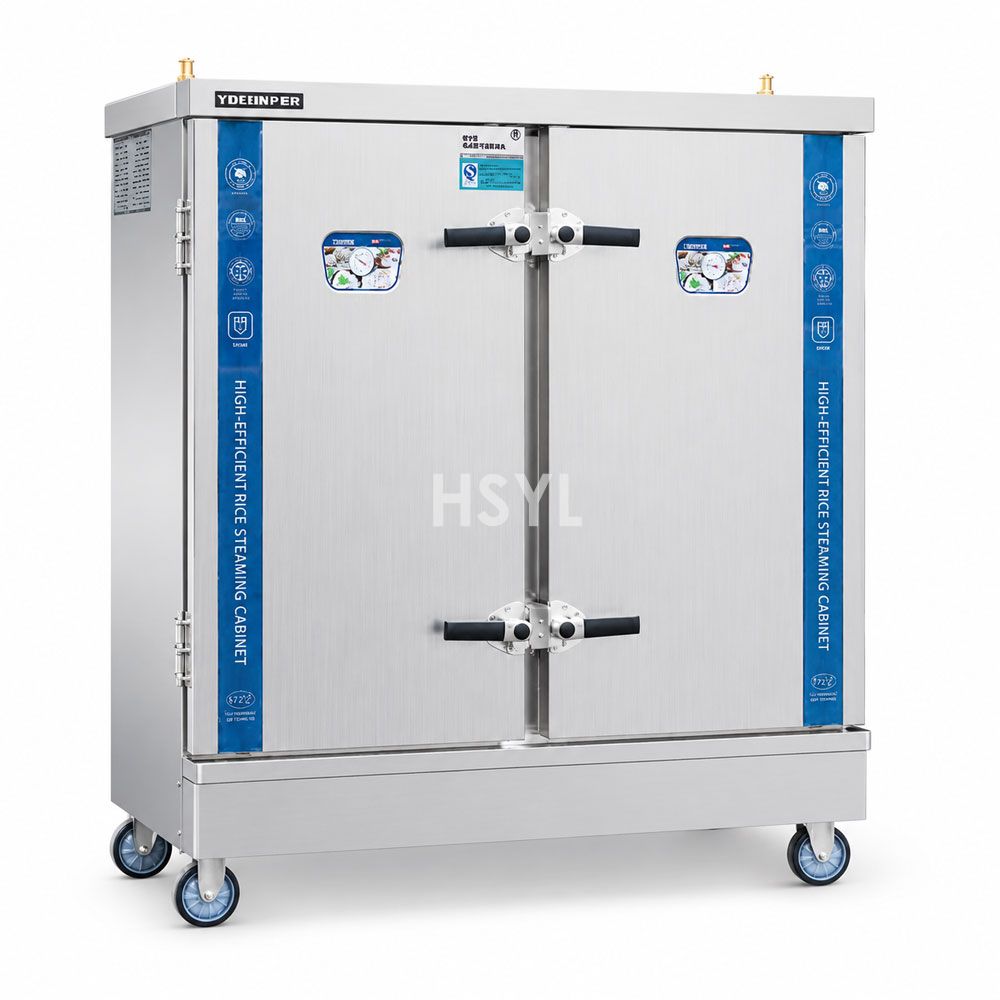

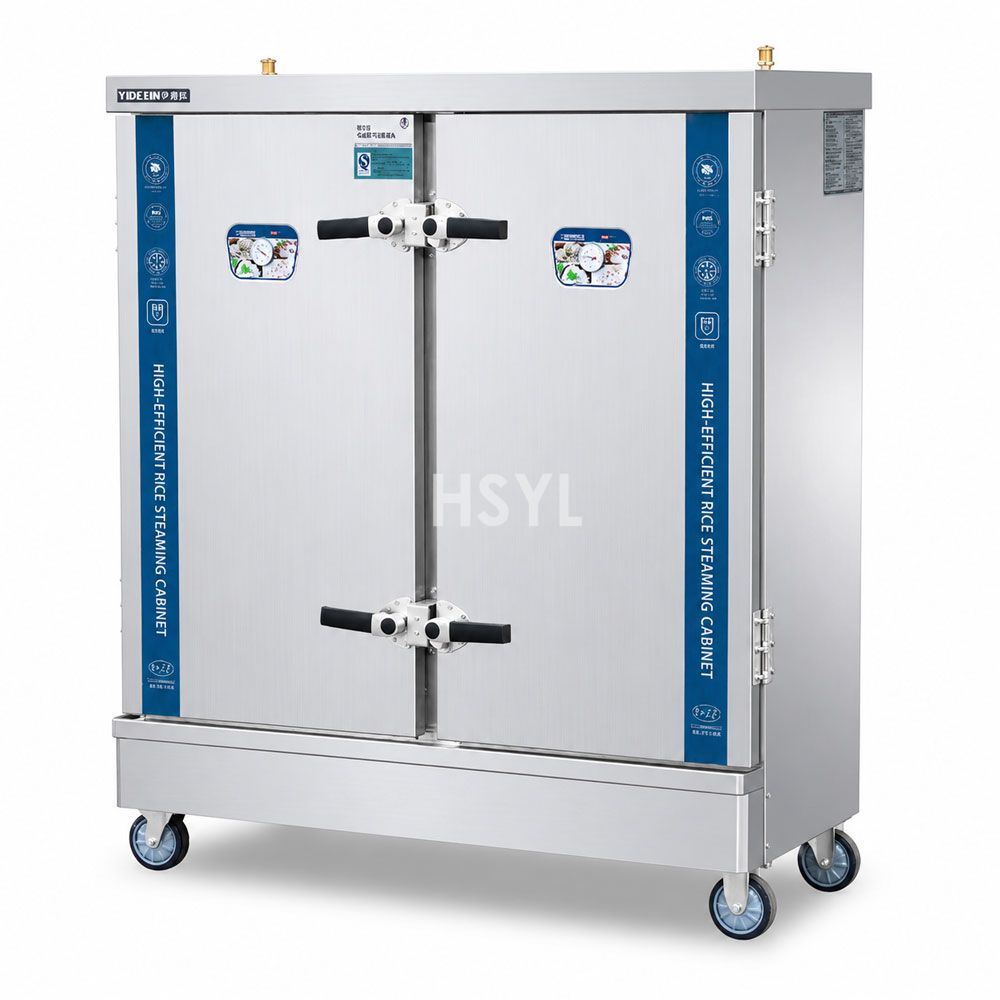

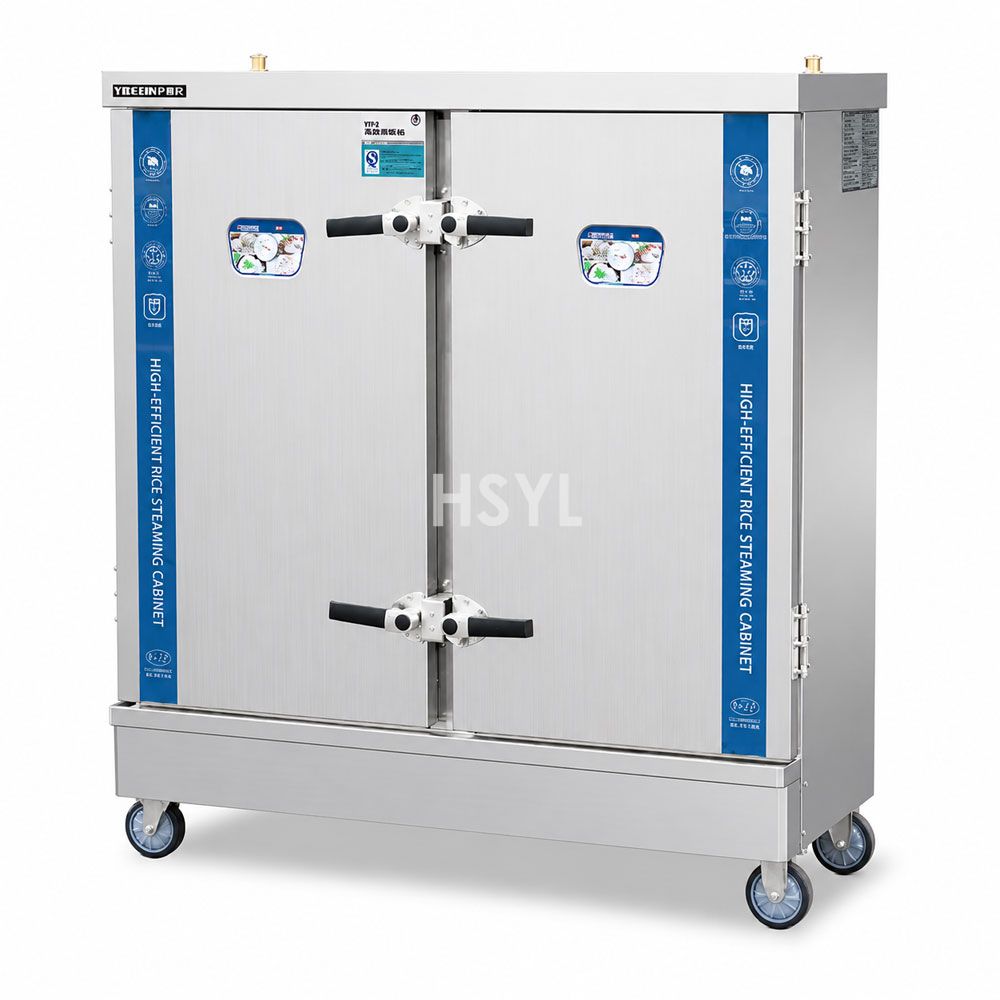

The HSYL EFP-DRS Deluxe Fingerprint Resistant Steamer Cabinet answers a question that every open-kitchen designer, hotel buffet manager, and restaurant owner eventually asks: "Can my steamer look as clean at dinnertime as it did at breakfast service?" Standard stainless steel equipment accumulates fingerprints, water spots, and smudges throughout a busy service day — visible to customers when the steamer sits in an open cooking line, buffet station, or display kitchen. The EFP-DRS solves this by wrapping the proven internal engineering of the HSYL DRS steamer family in a fingerprint-resistant stainless steel exterior that maintains a polished, sanitary appearance with far less daily polishing effort than conventional finishes.
Beneath the premium exterior, the EFP-DRS delivers the same reliable steam generation as its sibling series: built-in electric boiler (9kW to 12kW×2 depending on capacity), AUTOFFILL automatic water-fill with dry-burn protection, SUS304 electric heating pipes with pure copper vapor caps, 3cm overall foaming insulation, and the Y-shaped DN 20mm steam inlet architecture shared across the entire DRS platform. What distinguishes the EFP-DRS is not how it steams — it is how it presents itself in environments where equipment aesthetics affect customer perception of kitchen hygiene and professionalism.
The series spans 9 models from compact 4-tray countertop units suitable for display cooking stations up to 36-tray vertical configurations designed for large hotel banqueting operations and institutional canteens where the steamer may be partially or fully visible to diners. For facility planners building a comprehensive commercial kitchen equipment solution, the EFP-DRS occupies the premium-finish niche: choose the Economic Steamer Cabinet for back-of-house installations where appearance is secondary to budget efficiency, or step up to the EFP-DRS when the steamer occupies guest-visible real estate.
Technical Specifications
| Model | Trays | Cabinet Size (W×D×H, mm) | Rated Power | Rated Voltage | Capacity | Water Input Pressure | Circuit Breaker | Steam Inlet Connection | Tray Size (mm) | Vapor Pressure | Net Weight |
|---|
| EFP-DRS-4 | 4 | 695 × 815 × 835 | Control only | 3~380V
or
2~220V | 4KG / Tray | ≤4 kPa | Y-shaped connection method | DN 20mm | 400 × 600 × 50 | ≤0.02 MPa | 27 kg |
| EFP-DRS-6 | 6 | 695 × 815 × 1005 | 9kW | 31 kg |
| EFP-DRS-8 | 8 | 695 × 815 × 1175 | 36 kg |
| EFP-DRS-10 | 10 | 695 × 815 × 1345 | 39 kg |
| EFP-DRS-12 | 12 | 695 × 815 × 1515 | 12kW | 3~380V
or
220V | 43 kg |
| EFP-DRS-24 | 24 | 1350 × 815 × 1545 | 12kW × 2
(dual boiler) | 82 kg |
| EFP-DRS-24V (Vertical) | 12 | 1000 × 815 × 1525 | 12kW | 84 kg |
| EFP-DRS-36V (Vertical) | 24 | 1580 × 815 × 1525 | 12kW × 2
(dual boiler) | 145 kg |
|
|
|
|
|
Note: Cabinet depth is 815 mm across all EFP-DRS models — the deepest in the HSYL steamer cabinet family — providing a stable, low-profile footprint even on tall vertical configurations. The fingerprint-resistant stainless steel finish applies to the exterior cabinet surfaces; confirm interior food-contact surface grade specification before ordering.
Working Process
The EFP-DRS generates saturated steam through an integrated electric boiler system, delivering consistent steaming results through four operational stages while maintaining its polished exterior appearance throughout each service day:
- Water fill & preheat. The AUTOFFILL system automatically manages water level in the boiler reservoir. When powered on, the SUS304 electric heating elements bring water to steam temperature inside the fully foamed 3cm-thick insulated chamber. Preheat duration depends on initial water temperature and model power rating (9kW models reach operating temperature faster than control-circuit-only configurations). The fingerprint-resistant exterior remains cool-to-touch during preheat thanks to the thick insulation layer.
- Loading & cycle start. Open the door — the embedded multiple-airbag silicone door seal ensures a steam-tight closure when latched. Load food trays onto the rack guides (each tray rated 4KG capacity at 400×600×50mm size). Set the timer or temperature controller to the required duration for your menu item. Close and latch; the six-bolt large hinge maintains precise alignment across thousands of open/close cycles.
- Steaming operation. Steam circulates evenly around all tray positions. The pure copper vapor cap distributes vapor uniformly into the chamber. During operation, the fingerprint-resistant exterior resists condensation marks and hand-contact smudges that would show visibly on standard stainless steel — meaning the cabinet still looks presentable if a chef briefly opens the door mid-cycle for inspection in front of guests.
- Unload, reset, and wipe-down. When the cycle completes, open carefully allowing residual steam to vent. Remove hot trays using oven mitts and transfer to the next workstation — such as a Cooking Range 900 Series hot zone for finishing plating, or to a chilled area for cook-chill assembly. The fingerprint-resistant surface wipes clean in seconds with a damp microfiber cloth — no special stainless steel polish or heavy scrubbing needed to restore the original appearance before the next service period.
Applications by Industry & Food Type
What Can You Steam? — Complete Food Compatibility List
The HSYL EFP-DRS Deluxe Fingerprint Resistant Steamer Cabinet handles an exceptionally wide range of foods:
| Food Category | Specific Items | Steaming Benefit |
|---|
| Rice & Grains | White rice, brown rice, sticky rice, glutinous rice, millet | Fluffier texture; more even cooking than rice cookers |
| Dim Sum & Dumplings | Siu mai, har gow, char siu bau, dumplings (all varieties), baozi, xiaolongbao | Professional restaurant-quality results; consistent across batches |
| Seafood | Whole fish, fish fillets, shellfish (clams/mussels), crab, lobster, prawns, scallops | Preserves natural moisture and flavor; no oil needed |
| Bread & Baked Goods | Steamed bread (mantou), steamed buns, bao, cornbread | Soft, moist texture; no dry crust |
| Vegetables | Corn on cob, potatoes (all types), broccoli, cabbage, carrots, leafy greens, pumpkin | Nutrient-preserving; retains color and vitamins better than boiling |
| Meat & Poultry | Chicken (whole/pieces), pork ribs, beef brisket, meatballs, sausages | Tender results; fat renders away during steaming |
| Eggs & Custards | Steamed eggs, egg custards, chawanmushi | Silky smooth texture; no bubbles |
| Special Applications | High-temperature steam sterilization for meals and tea sets | Sanitizes serving ware and tableware between services |
Industry Applications — Where Appearance Matters
- Open-kitchen & live-cooking restaurants. In modern restaurants where diners watch chefs prepare food behind an open pass or counter, the EFP-DRS maintains a clean, professional appearance throughout continuous service. Fingerprints from repeated door openings do not accumulate into the smudged, greasy look that standard stainless develops by midafternoon. The polished finish reinforces the restaurant's hygiene standards visually without requiring staff to pause for equipment polishing between orders.
- Hotel buffets & banquet displays. Buffet stations place equipment directly in front of guests who evaluate food quality partly by the cleanliness and condition of the serving equipment. An EFP-DRS at a dim sum or rice station looks pristine from breakfast setup through lunch teardown. Hotel banquet managers often select the EFP-DRS over the Economic series specifically for this guest-facing visibility factor.
- Showroom & demonstration kitchens. Equipment dealerships, culinary school teaching labs, and manufacturer demo rooms need equipment that photographs well, looks new after repeated handling by visitors, and requires minimal upkeep between viewings. The fingerprint-resistant surface handles constant touching and handling during tours without degrading the presentation quality.
- Institutional canteens with visitor programs. Schools, corporate cafeterias, and government dining halls that host tours, inspections, or public events benefit from equipment that presents well under observation. The EFP-DRS signals investment in quality and attention to detail that reflects positively on the institution's foodservice operation.
- Mining areas, factories, and field operations. Even in industrial environments where aesthetics are secondary, the fingerprint-resistant finish offers a practical advantage: dust, grease film, and handprints wipe off faster and with less elbow grease than standard stainless, reducing daily cleaning labor in high-turnover shift environments.
- Catering & event rental companies. Mobile caterers transport equipment to client venues where first impressions matter — weddings, corporate events, outdoor functions. Equipment that arrives looking clean and stays looking clean through multi-hour service windows protects the caterer's brand reputation. The EFP-DRS's wipe-clean exterior is a tangible operational advantage for mobile operators.
Key Advantages
✅ Advantage 1: Fingerprint-Resistant Stainless Steel Exterior
The defining feature of the EFP-DRS series — and the reason it exists as a separate product line within the HSYL portfolio — is the high-quality fingerprint resistant stainless steel body. This is not cosmetic marketing language; it addresses a genuine operational problem that standard stainless steel creates in guest-visible kitchen environments:
- Resists visible fingerprint accumulation. The treated surface does not eliminate fingerprints entirely but dramatically reduces their visibility compared to standard brushed 304 or 201 stainless. After a full service day of normal operator contact, an EFP-DRS shows minimal smudging where a standard unit would display obvious handprint patterns.
- Faster cleaning between services. A quick wipe with a damp cloth restores the original appearance. No stainless steel polish, no buffing, no aggressive scrubbing compounds needed. This translates directly into reduced labor minutes per cleaning cycle — measurable over weeks and months of daily operation.
- Sustained professional appearance. From morning prep to dinner close, the equipment maintains a consistent polished look that communicates cleanliness and quality to anyone who sees it — whether that is a health inspector, a VIP diner touring the kitchen, a food blogger photographing the cooking line, or the owner conducting a walkthrough.
- Beautiful and practical. Unlike decorative finishes that sacrifice durability for appearance, the fingerprint-resistant treatment preserves (and in some formulations enhances) the corrosion resistance and scratch tolerance of the underlying stainless steel. It is a working finish, not just a showroom finish.
✅ Advantage 2: Proven DRS-Family Internal Engineering
Behind the premium exterior, the EFP-DRS contains the battle-tested internal systems that have made the HSYL DRS steamer family a commercial kitchen standard:
| Feature | Specification | Benefit |
|---|
| Cabinet Construction | High-quality stainless steel plate with smooth finish | Sanitary, easy to maintain structural integrity |
| Insulation Layer | Overall foaming, 3cm thickness | Excellent thermal insulation — saves energy, protects operators from burns, keeps exterior cooler |
| AUTOFFILL Safety | Auto water-fill + water-shortage power-off protection | Anti-dry burning protection — cuts power if water drops below safe level |
| Heating Element | SUS304 electric heating pipe with pure copper vapor cap | Corrosion-resistant; high heat transfer efficiency; long service life |
| Door Seal | New multiple airbags + embedded silicone door seal, securely sealed | Steam-tight closure; zero leakage; maintains cooking efficiency cycle after cycle |
| Hinge System | Six-bolt large hinge | Heavy-duty; significantly more sturdy and durable than standard 4-bolt designs |
| Structural Reinforcement | Supporting ribs on both sides of cabinet | Prevents deformation under repeated thermal expansion/contraction cycles |
| Efficiency Rating | Highly efficient and energy saving, easy to operate | Lower operating cost per steaming cycle; minimal training required |
This means buyers are not sacrificing any internal performance or safety capability to get the upgraded exterior finish — the EFP-DRS delivers both premium appearance and proven functionality in one package.
✅ Advantage 3: Widest Cabinet Depth in the Family — 815 mm
All nine EFP-DRS models share a consistent 815 mm cabinet depth, making them the deepest-footprint units in the entire HSYL steamer cabinet portfolio (sibling series range from 615 mm to 660 mm). This extra depth provides practical advantages:
- Greater stability. The deeper base lowers the center of gravity, reducing tipping risk on tall vertical models (EFP-DRS-24V, EFP-DRS-36V) and improving resistance to accidental bumps from carts or foot traffic in tight kitchen aisles.
- More generous internal workspace. Deeper cabinets provide additional clearance behind the tray racks for steam distribution, drainage channels, and maintenance access without crowding the loading area.
- Consistent dimension planning. Because every model shares the same 815 mm depth, kitchen layout drawings can use one depth value regardless of which EFP-DRS model is specified — simplifying floor plan design when upgrading from a smaller to larger model in the future.
✅ Advantage 4: Broadest Single-Series Model Range — 9 Configurations
The EFP-DRS offers nine distinct models, giving it the widest selection within any single HSYL steamer cabinet series (the Economic series covers more total trays but spans more sub-tiers):
| Model Group | Models | Trays | Power | Best Fit |
|---|
| Entry compact | EFP-DRS-4 | 4 | Control circuit | Countertop display stations, very small venues |
| Standard small | EFP-DRS-6/8/10 | 6 – 10 | 9kW | Small restaurants, snack bars, café kitchens |
| Standard medium | EFP-DRS-12 | 12 | 12kW | Mid-size restaurants, hotel à la carte kitchens |
| Large standard | EFP-DRS-24 | 24 | 12kW × 2 (dual boiler) | Large canteens, central kitchen batch steaming |
| Vertical medium | EFP-DRS-24V | 12 | 12kW | Narrow-aisle installations needing vertical form factor |
| Vertical flagship | EFP-DRS-36V | 24 | 12kW × 2 | Maximum vertical throughput for large institutions |
This 9-model span allows a buyer to stay within the EFP-DRS fingerprint-resistant line from a 27 kg countertop unit up to a 145 kg institutional flagship without ever switching product families or compromising on finish consistency across their kitchen fleet.
✅ Advantage 5: Dual-Boiler Architecture for High-Capacity Models
The two largest EFP-DRS models (24-tray standard and 36V-tray vertical) employ a dual-boiler design with 12kW × 2 total heating power:
- Distributed heat generation. Two separate boiler chambers distribute steam generation points rather than relying on a single large boiler, promoting more uniform temperature across the full tray complement on wide-chamber (1350mm width for EFP-DRS-24) or tall-chamber (1580mm width for EFP-DRS-36V) configurations.
- Redundancy margin. If one boiler requires maintenance, the other can continue limited operation in some scenarios (depending on piping configuration) — providing a partial-output fallback that a single-boiler design cannot offer.
- Scalable throughput. The 12kW × 2 configuration produces steam volume appropriate for 24-tray simultaneous loading, maintaining consistent steam saturation even when the chamber is fully loaded with dense foods like rice trays on every shelf.
✅ Advantage 6: Premium Position Without Compromised Performance
A common concern with "deluxe" or "premium" equipment variants is whether the buyer pays more for appearance while getting less (or equal) internal performance. The EFP-DRS eliminates this trade-off:
- Same AUTOFFILL safety system as the Economic, Intelligent, Automatic, and Gas series — no downgraded safety features on the premium model.
- Same SUS304 heating pipes and pure copper vapor caps — identical component materials internally.
- Same 3cm foaming insulation — identical thermal performance and energy efficiency.
- Same 4KG/tray rating and 400×600×50mm tray compatibility — works with the same commercial tray inventory as all other DRS-series units.
- Same DN20mm Y-shaped steam inlet (for models with external steam capability) — compatible with existing facility steam infrastructure if applicable.
- Only difference: the exterior finish. The fingerprint-resistant stainless steel is the sole distinguishing variable between the EFP-DRS and the functionally equivalent EBJ-DRS Economic series models.
CTA
Ready to specify a steamer cabinet that performs flawlessly and looks impeccable throughout every service? HSYL provides finish samples, side-by-side comparisons with our Economic series, and layout guidance for guest-visible equipment placement.
- Request a quote — send your tray capacity target, available floor dimensions, and whether the unit will be placed in a guest-visible or back-of-house location for a tailored EFP-DRS model recommendation and project quotation.
- Request a finish sample — compare the fingerprint-resistant stainless steel side-by-side with standard stainless to see the visual and tactile difference before committing.
- Compare with Economic series — if budget is the primary constraint and the unit will be installed out of guest sightlines, request a cost comparison between the EFP-DRS and the Economic Steamer Cabinet (EBJ-DRS Series) to determine whether the finish upgrade justifies the incremental investment for your specific installation context.
