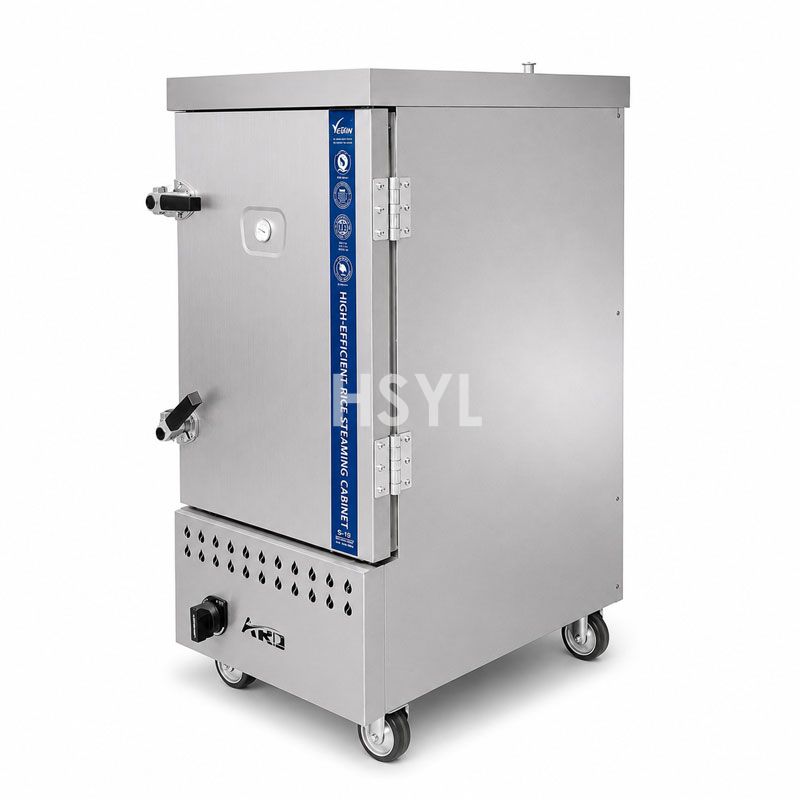

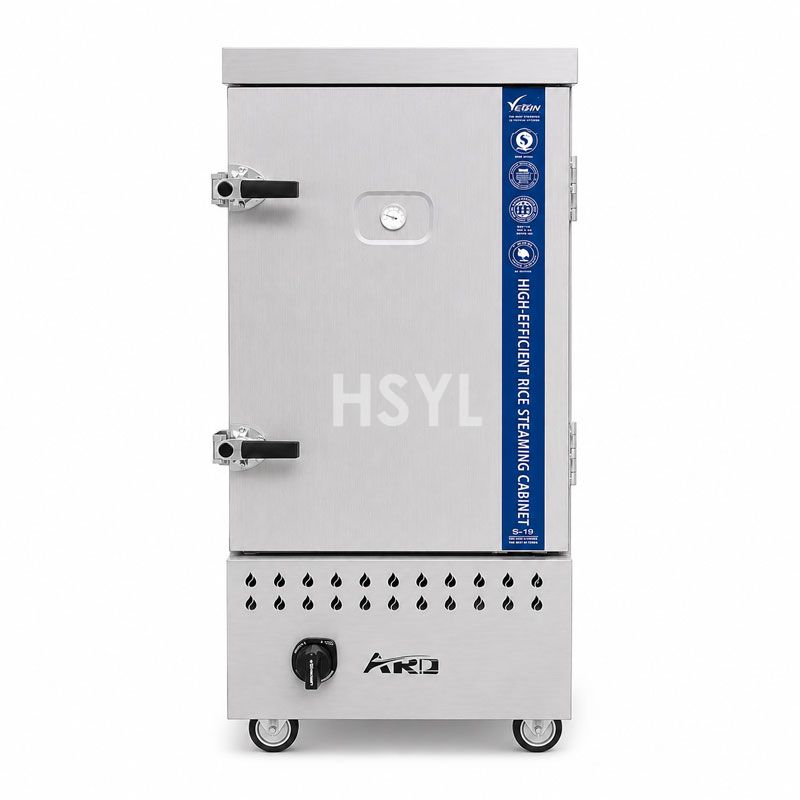

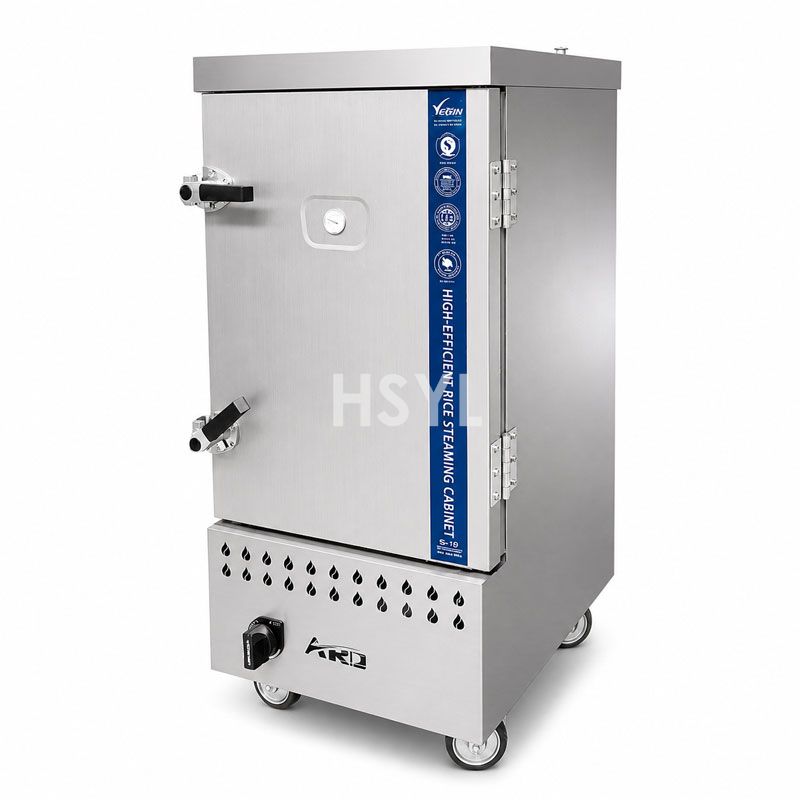

Fingerprint Resistant Gas Steamer Cabinet | EFP-CNGS 6-36 Tray CNG/LPG Steamer

Product Introduction

When your steamer cabinet sits behind a glass partition at a live cooking station, or when guests walk past your open buffet line and see the equipment between meal services, the question shifts from "does it steam well?" to "does it look clean right now?" Standard stainless steel accumulates fingerprints, water spots, and smudges within hours of active service — by dinner service, a morning-used steamer can look neglected even when it operates perfectly. At the same time, many of those guest-visible kitchens run on natural gas or LPG because fuel costs are lower than electricity, because electrical panel capacity is maxed out, or because management wants energy-source diversification. The Fingerprint Resistant Gas Steamer Cabinet (EFP-CNGS Series) from HSYL is built specifically for this intersection: it brings a fingerprint-resistant stainless steel exterior that maintains a clean visual appearance throughout daily service, pairs it with dual-fuel gas operation (Natural Gas or LPG), and backs both with engineering-grade safety hardware including AUTOFILL anti-dry-burn protection, flameout-then-gas-cut-off interlock, and a detachable and replaceable water tank that simplifies maintenance compared to fixed-reservoir designs.

The EFP-CNGS covers seven models from 6-tray countertop units to the EFP-CNGS-36V vertical type carrying 36 trays — the largest single-unit capacity across the entire HSYL steamer cabinet portfolio. Every model shares the same construction DNA: overall foamed 3 cm insulation, six-bolt large hinges, supporting ribs on both cabinet sides, multiple-airbag embedded silicone door seals, rotary electronic ignition with pull-out ignition device, brake silent wheels, and pure copper vapor caps. For buyers comparing across HSYL's steamer lineup, the EFP-CNGS occupies a position that neither the standard-finish Gas Steamer (EB-CNGS) nor the electric-only Deluxe Fingerprint-Resistant Steamer (EFP-DRS) can fill alone — it is the only choice when you need gas power AND guest-ready appearance simultaneously.

Technical Specification

Gas Supply Scaling: Air inlet count scales proportionally with gas consumption: Tier 1 (6–12 trays) uses 1 inlet at 1.1 m³/h; Tier 2 (24/24V trays) uses 2 inlets at 2.2 m³/h; Tier 3 (36V) uses 3 inlets at 3.3 m³/h. Ensure your gas piping and regulator can deliver the required flow rate for your target model before installation.

Dual Fuel: All EFP-CNGS models accept both Liquid Gas (LPG/propane) and Natural Gas (methane). Nozzle caliber differs slightly by model tier (1.03 mm for 6–24T standard; 0.95 mm for 24V/36V vertical types). Confirm your local gas composition with HSYL during quotation to ensure optimal nozzle matching.

Largest Single Unit: EFP-CNGS-36V carries 36 trays (144 KG total capacity at 4 KG/tray) — more than any other single-unit model in the entire HSYL steamer cabinet portfolio. For maximum-throughput single-installation projects, the 36V vertical configuration delivers the highest per-cycle output available.

Working Process

1. Loading & Door Sealing. Place food items onto 400×600×50 mm trays. Load into the chamber and close the door firmly. The multiple-airbag embedded silicone compression seal engages around the full perimeter, creating a gas-combustion steam-tight chamber. The six-bolt large hinge holds precise alignment under repeated cycles. The fingerprint-resistant stainless steel exterior resists smudging from operator hand contact during loading.
2. Ignition & Gas Combustion. Initiate operation using the rotary electronic ignition with pull-out ignition device. Gas flows from the supply line (Natural Gas at 2000 Pa input pressure, or LPG via regulator) through the fire bar nozzle(s) — 1 nozzle for 6–12T models, 2 nozzles for 24T/24V, 3 nozzles for 36V. Combustion heats the boiler chamber, generating saturated steam. The AUTOFILL function automatically manages water level in the boiler reservoir throughout the cycle.
3. Steaming Under Multi-Layer Safety. As steam saturates the chamber (~100°C equivalent at operating pressure), food items cook. Duration varies: rice 20–40 minutes; buns/dim sum 8–15 minutes; seafood 5–12 minutes. Three independent safety mechanisms operate continuously: (a) AUTOFILL monitors water level and prevents dry exposure of heating surfaces; (b) anti-dry-burning protection cuts combustion if water depletes unexpectedly; (c) flameout detection triggers immediate gas cut-off if the burner flame extinguishes for any reason. The 3 cm foamed insulation minimizes heat radiation to the surrounding kitchen environment.
4. Completion, Unloading & Water Tank Service. When the cycle timer elicits completion, open the door allowing controlled steam venting downward. Remove trays. Because the water tank uses a detachable and replaceable design, maintenance staff can remove the tank for descaling, cleaning, or replacement without disassembling the cabinet structure — a significant service-time advantage over fixed-integrated reservoir designs. The brake silent wheels allow repositioning for cleaning access. The fingerprint-resistant exterior wipes clean quickly, maintaining presentation quality between services.

Safety Architecture Note: The three-layer protection chain (AUTOFILL → Anti-dry-burning → Flameout gas cut-off) operates independently. Even if one mechanism fails, the remaining two provide redundant shutdown paths. This defense-in-depth approach exceeds single-interlock designs found on basic gas steamers and aligns with engineering-grade standards expected in institutional and hospitality environments.

Applications

• Hotel Open Kitchens & Live Buffet Stations. Highest-value application — guests directly observe cooking equipment during breakfast, lunch, and dinner service. The fingerprint-resistant stainless steel exterior maintains a polished, smudge-free appearance throughout multi-shift operation while gas operation reduces utility costs versus all-electric alternatives. EFP-CNGS-12 or EFP-CNGS-24 fits most hotel main-kitchen footprints; EFP-CNGS-36V handles convention-center-scale banquet throughput.
• Show Restaurants & Teppanyaki-Style Venues. Dining concepts where kitchen equipment forms part of the interior design and customer experience. The EFP-CNGS presents a premium visual impression that standard-finish gas steamers cannot match, while delivering authentic gas-generated steam flavor profiles that some culinary traditions prefer over electric-boiler steam.
• Mining Areas & Industrial Site Cafeterias. Heavy-duty environments where gas infrastructure exists but electrical capacity is constrained or unreliable. The reinforced body (six-bolt hinges + supporting ribs + brake silent wheels) tolerates rough handling; the detachable water tank simplifies field maintenance where professional service access is limited. Electric-independent operation ensures continued food service during power fluctuations.
• Institutional & Government Catering. Schools, universities, hospitals, military bases, and government canteens where equipment appearance reflects facility standards during inspections or public tours. Fingerprint-resistant finish reduces daily cleaning labor while presenting a well-maintained image. Gas operation may align with existing campus/institutional gas infrastructure.
• Central Kitchen Production Lines. High-volume batch steaming for satellite distribution. EFP-CNGS-36V (36 trays, 144 KG/cycle) delivers maximum single-unit throughput. Gas operating cost advantage compounds at continuous-production scale. The detachable water tank enables quick tank swap during production windows without extended downtime for integrated-reservoir servicing.
• High-Temperature Steam Sterilization. Beyond food, the chamber functions as a sterilization unit for meal containers, utensils, tableware, and tea sets. Gas-generated steam at operating temperature achieves chemical-free sanitization. The fingerprint-resistant exterior keeps the unit looking presentable even when positioned in semi-public sterilization zones.

Advantages

1. Fingerprint-Resistant Exterior for Guest-Visible Installations. The EFP-CNGS is constructed from high-quality fingerprint-resistant stainless steel plates that maintain a smooth, clean visual appearance despite frequent operator contact, steam condensation, and daily wiping. In open-kitchen or buffet environments where equipment aesthetics affect guest perception, this finish eliminates the "neglected appliance" problem that plagues standard-stainless units by midday service. Cleaning labor drops because smudges wipe off easily without specialized cleaners or polishing.
2. Dual-Fuel Flexibility (Natural Gas + LPG). Every EFP-CNGS model accepts both Natural Gas and Liquid Petroleum Gas (LPG) through the same burner assembly with appropriate nozzle calibration. This means a single equipment purchase adapts to whichever fuel is more economical or available at your site — no model change required. If fuel prices shift or supply contracts change, switch between NG and LPG with regulator adjustment and nozzle confirmation.
3. Three-Layer Independent Safety Chain. Unlike basic gas steamers relying on a single shut-off mechanism, the EFP-CNGS implements three separate and independently operating safety systems: (1) AUTOFILL manages boiler water automatically and prevents low-water conditions; (2) anti-dry-burning protection cuts combustion if water depletes despite AUTOFILL; (3) flameout-then-gas-cut-off protection shuts the gas supply if burner flame extinguishes unexpectedly. This defense-in-depth architecture significantly reduces fire-risk exposure compared to single-interlock designs.
4. Detachable & Replaceable Water Tank (Exclusive Feature). The EFP-CNGS water tank adopts a modular detachable design — the only HSYL steamer cabinet series with this feature. Maintenance benefit: remove the tank for descaling, thorough cleaning, or outright replacement without dismantling cabinet panels or draining the entire system in situ. Operational benefit: carry a spare pre-filled tank for quick swap during peak-service windows, minimizing downtime between back-to-back cycles. Field-service benefit: remote-site installations (mining, military, temporary facilities) gain serviceability that fixed-reservoir designs cannot match.
5. Largest Single-Unit Capacity in Portfolio. EFP-CNGS-36V (vertical type) carries 36 trays — 144 KG total capacity at 4 KG/tray. This exceeds the maximum tray count of every other HSYL steamer series (Economic tops at 48 trays but only in larger non-vertical configurations; all other series max at 24–30 trays). For projects requiring maximum per-cycle output from a single equipment footprint, the 36V is the highest-capacity option available.
6. Engineering-Grade Reinforced Construction. Five structural upgrades distinguish the EFP-CNGS body from lighter gas-steamer alternatives: (a) six-bolt large hinge distributes door load across more fastening points for heavy-cycle durability; (b) supporting ribs on both cabinet sides resist flexural deformation under full load at elevated temperatures; (c) multiple-airbag embedded silicone door seal maintains compression integrity longer than single-strip seals; (d) brake silent wheels enable safe repositioning with locking stability; (e) pure copper vapor caps ensure reliable venting without corrosion degradation common to inferior materials.

Total Cost of Ownership Angle: For guest-visible gas-kitchen installations running 3+ daily cycles over 5+ years, the EFP-CNGS delivers compound value through four channels: (a) reduced cleaning labor from fingerprint-resistant finish (estimated 10–15 min/day savings on exterior wiping); (b) lower fuel cost from gas vs electric operation (varies by region — confirm local NG/LPG pricing); (c) reduced service downtime from detachable water tank (tank swap vs field-descale); (d) extended structural life from reinforced body (fewer hinge/door-seal replacements). These factors offset the premium acquisition cost versus standard-finish gas steamers in most medium-to-high-volume scenarios.

CTA

Contact HSYL with your target model (EFP-CNGS-6 through EFP-CNGS-36V), preferred gas type (Natural Gas or LPG), site gas supply pressure specifications, daily tray-capacity requirement, and installation context (open kitchen / back-of-house / industrial site). HSYL will confirm nozzle calibration for your gas composition, provide detailed AUTOFILL and safety-system specifications, validate gas piping and ventilation requirements, and support detachable water tank spare-part ordering for your project.
