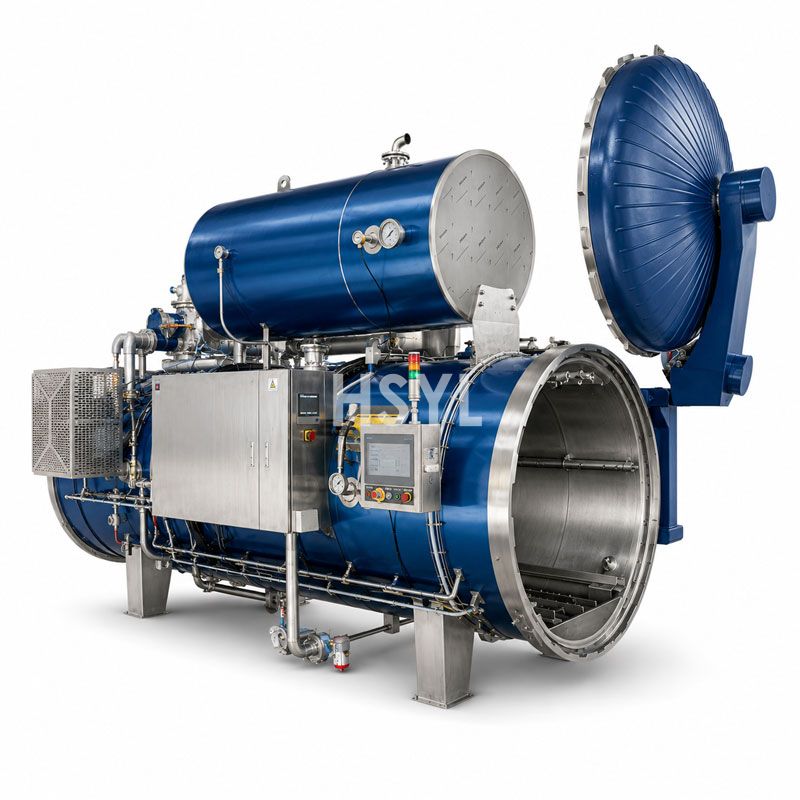

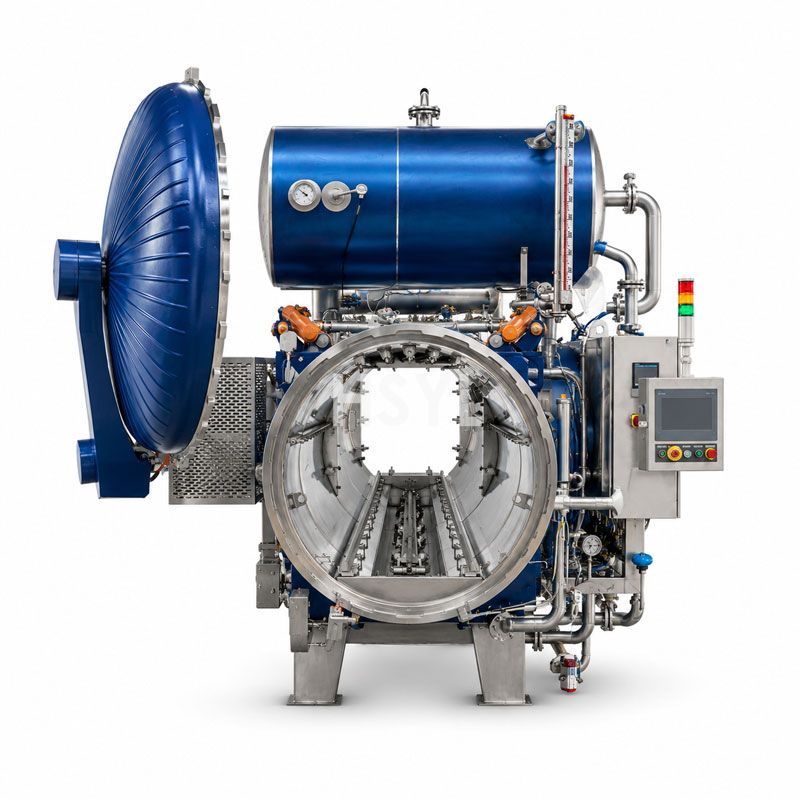

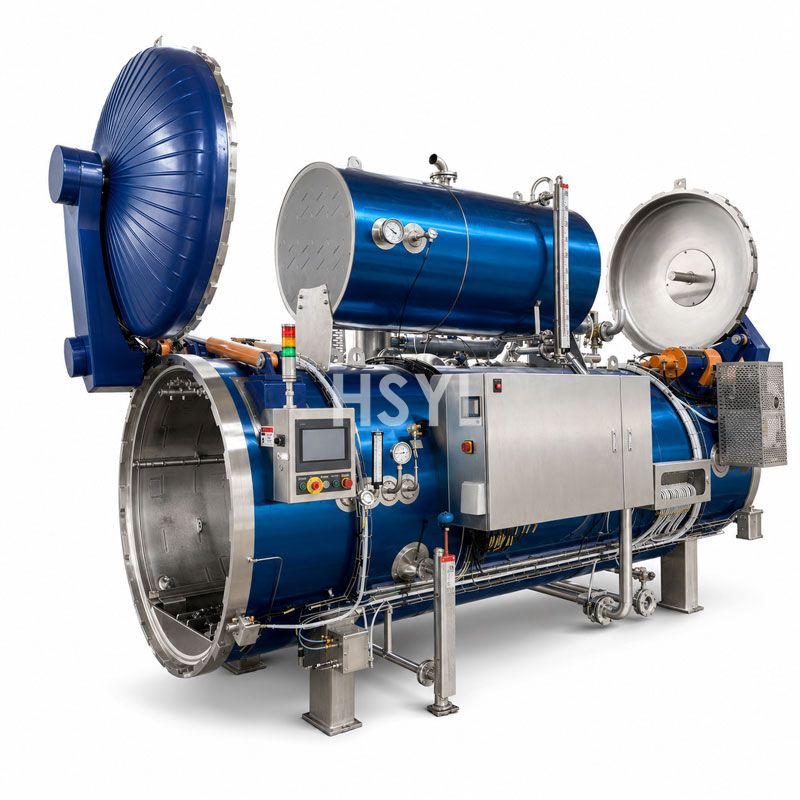

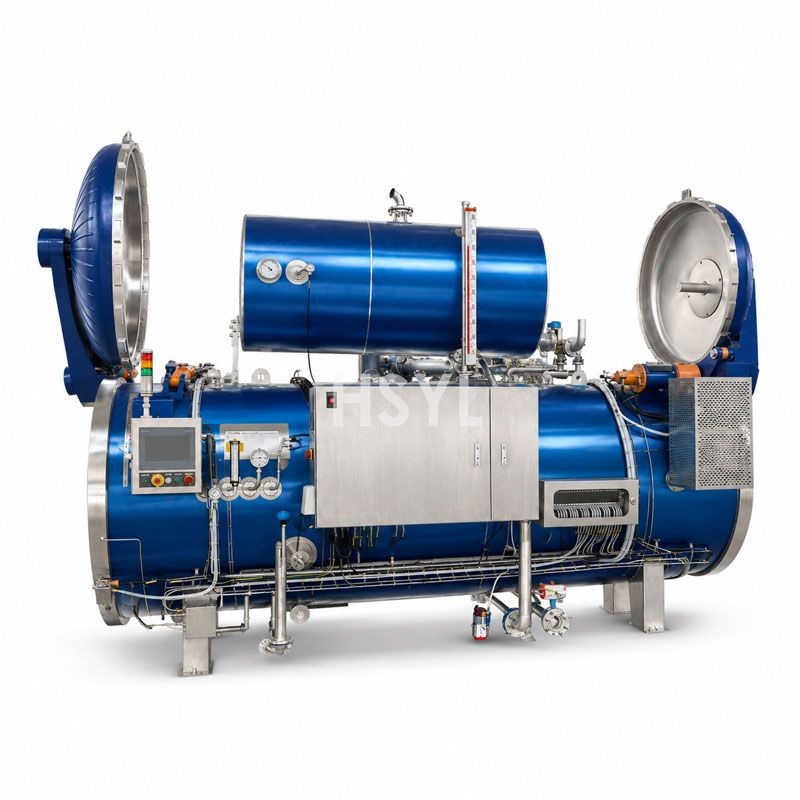

Retort Sterilizer for Canned Fish — Vacuum, Rotary and Continuous Options
This retort sterilizer is engineered for seafood canning plants processing tuna, sardine, mackerel and mixed seafood products. It addresses key production problems: headspace control for oily/brine formulas, consistent thermal lethality across cans, and predictable cycle times that align with automated canning lines and downstream retort logistics.
- Capacity: 3,000–20,000 cans per hour depending on model and line configuration
- Compatibility: Packed/chunky fish, brine/oil/sauce fillings, and retort pouches where applicable
- Hygiene & material: Food-contact SUS316L internals, CIP-accessible piping and condensate drainage
Technical Specifications — Common Models
| Model | Type | Capacity (cans/h) | Cycle Time (typ.) | Chamber Volume | Max Temp / Pressure | Steam Consumption | Power | Vacuum | Material | Footprint (L×W×H) |
|---|
| RST-B150 | Batch horizontal autoclave | 3,000 | 45–75 min (dependent on product F0 target) | 1,500 L | ≤130 °C / ≤0.3 MPa | 0.9 t/h (steam) | 18 kW | Optional vacuum 50–80 mbar | SUS316L internals, SUS304 exterior | 4,200×2,100×2,400 mm |
| RST-R220 | Rotary retort (steam-air, rotary trays) | 4,000–12,000 | 20–40 min (typical canned fish cycle) | 2,200 L | ≤132 °C / ≤0.35 MPa | 1.6 t/h (steam) | 28 kW | Integrated vacuum extraction to 45–75 mbar | SUS316L internals, sanitary welds | 6,200×2,600×2,800 mm |
| RST-C400 | Continuous steam-air retort (chain conveyor) | 8,000–20,000 | 10–30 min in segmented zones | 4,000 L (multi-zone) | ≤132 °C / ≤0.4 MPa | 3.5 t/h (steam) | 55 kW | High-rate vacuum pockets, 40–70 mbar | SUS316L contact surfaces, CIP manifolds | 12,000×2,800×3,200 mm |
Why Vacuum-Assisted and Zoned Heating Matter for Canned Fish
Fish formulas with oil, brine and particulate are prone to headspace air, which causes seam bubble formation and uneven lethality during retorting. Vacuum extraction before heating removes trapped air, reduces oxidation risk, and improves heat transfer. Zoned steam-air control preserves product texture while achieving required F0 values across the can load.
Sterilization Mechanics and Control Architecture
The retort control system uses a PLC-based recipe engine (Siemens/Schneider class), multi-zone steam/air valves, and closed-loop temperature profiling with RTD arrays placed at representative can positions. Key elements include:
- Vacuum pockets and rapid exhaust valves to reduce headspace pressure prior to sealing the heating zone.
- Steam-air mixing with proportional control to limit condensation and maintain uniform heating.
- Conveyor indexing or rotary trays with load-balancing to keep residence time consistent for target F0.
- Integrated data logging, batch traceability and Ethernet/OPC-UA connectivity for plant SCADA and QA review.
Production Integration — Upstream and Downstream Alignment
The retort is typically placed after can seam inspection and leak detection and before palletizing and warehousing. For turnkey canning systems, our retorts integrate directly with the plant conveyor PLC and upstream filling/seaming equipment. Example integrations include the complete canned food production line and technical guidance on sterilization best practices in our knowledge base: The critical role of retort sterilization in fish canning safety.
Operational Benefits — Feature + Benefit
- Zone-by-zone temperature profiling: ensures uniform F0 across mixed-load cans, reducing under-processed pockets.
- Vacuum headspace extraction: lowers seam stress and reduces post-retort seam failures for oily/brine products.
- CIP-accessible steam manifolds and condensate traps: reduce downtime and support BRC/USDA hygiene audits.
- Modular conveyor/tray interfaces: simplifies line reconfiguration for different can sizes and product recipes.
Compliance, FAT/SAT and After-sales Support
Each retort is supplied with P&ID, thermal validation protocol, FAT checklist, IQ/OQ/SOP documentation and spare parts kits. We assist with thermal process development, retort mapping, and validation runs to establish F0 values and cycle parameters required for regulatory submission. On-site commissioning and global service support options are available.
Contact our project engineering team to request a layout drawing, thermal validation protocol or a turnkey quotation tailored to your canned fish production needs.
