Detailed Equipment Introduction

Gain in-depth insights into Banana Chips Vacuum Fryer equipment’s working principles, application scenarios, and technical highlights.

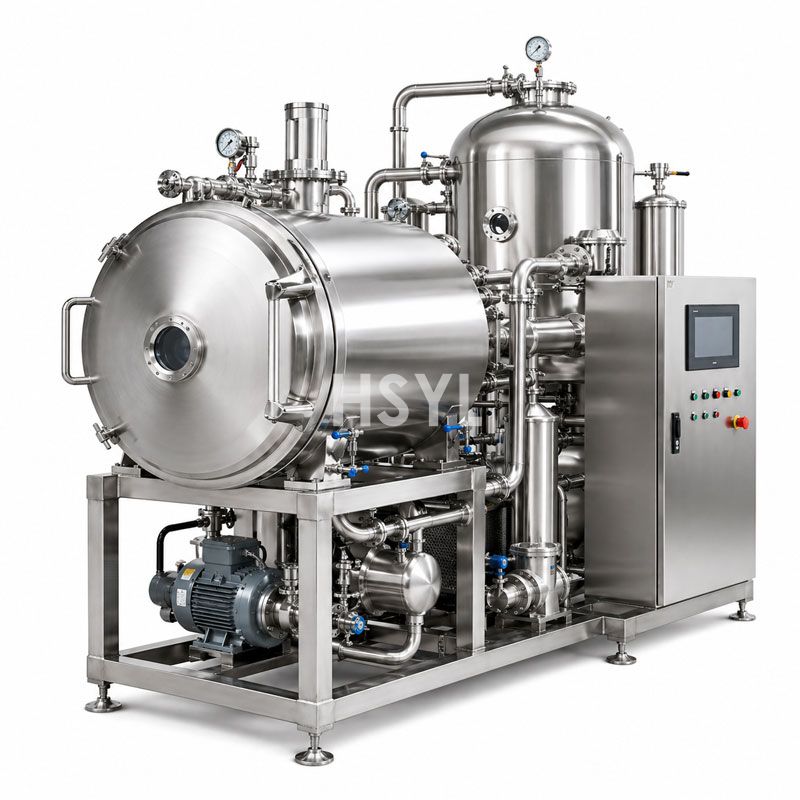

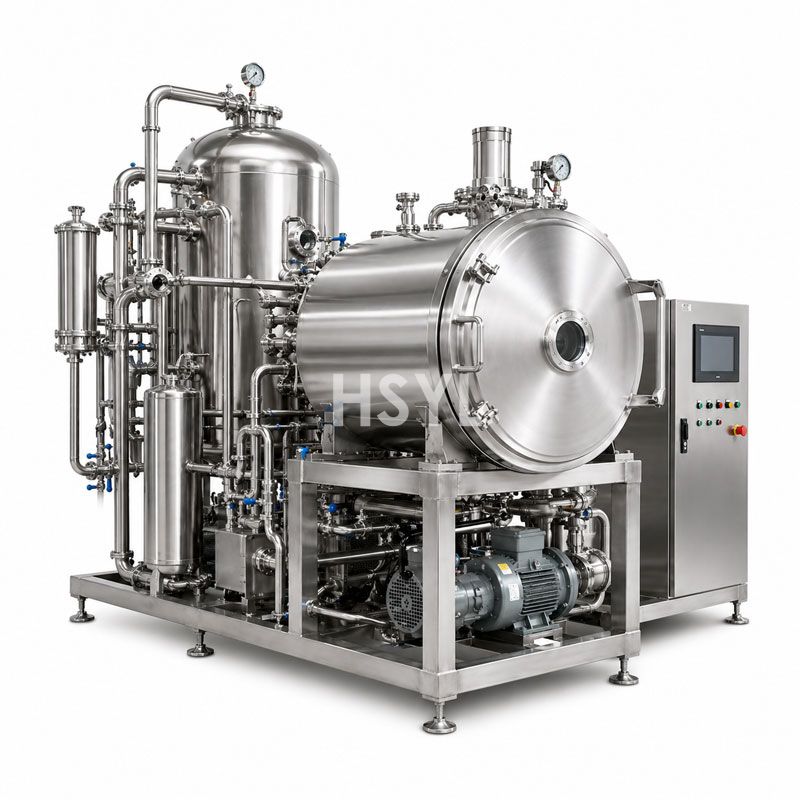

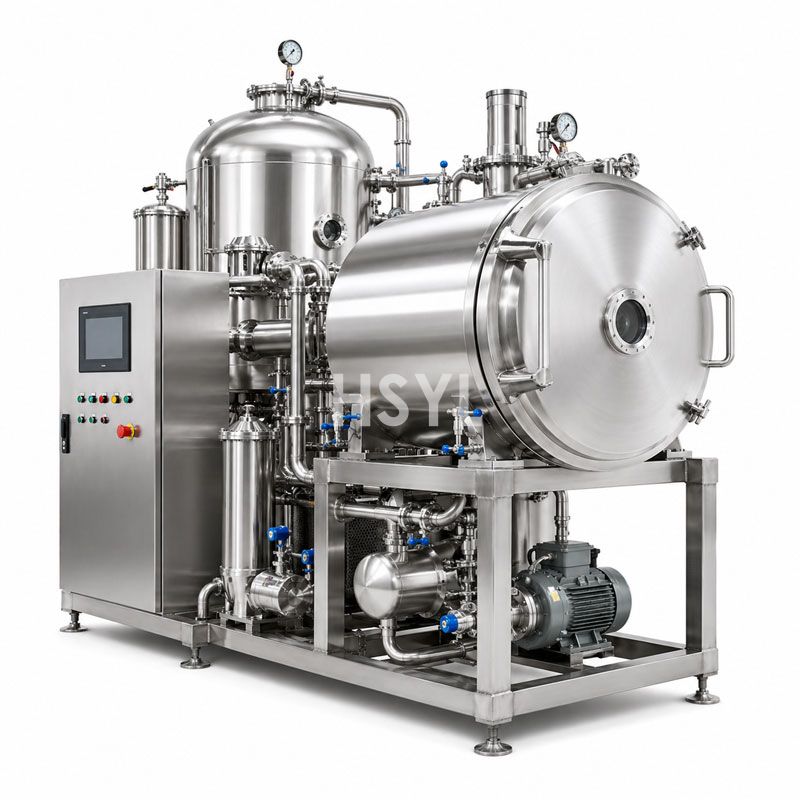

Industrial Banana Chips Vacuum Fryer Equipment

Executive Summary

The standard atmospheric frying of high-sugar fruits like bananas inevitably leads to rapid browning, sugar caramelization, and high oil retention. Our Industrial Banana Chips Vacuum Fryer operates under negative pressure to drastically drop the boiling point of moisture, enabling crisping at low temperatures (80°C to 100°C). This targeted engineering approach preserves the natural golden yellow color of banana slices, safeguards nutritional profiles, and reduces final oil content to below 15%.

Processing Capacity: 50 kg to 200 kg input per batch depending on configuration.
De-Oiling Efficiency: Built-in variable frequency centrifugal de-oiling (up to 300 RPM) guarantees a non-greasy texture.
Vacuum Engineering: Sustained -0.095 to -0.098 MPa vacuum degree to prevent acrylamide formation and structural shrinkage.

Banana Chips Vacuum Fryer Technical Specifications

Model Specification	Raw Material Input (kg/batch)	Vacuum Degree (MPa)	Frying Temperature (°C)	Heating Medium	De-oiling Speed (RPM)	Power Requirement (KW)	Weight (kg)	Dimensions (LWH mm)	Material Standard
VF-100B	100 kg	-0.095 to -0.098	80 - 100	Steam / Thermal Oil	100 - 300 (VFD)	15 KW	2200 kg	2800 * 2200 * 2500	SUS304 Full Enclosure
VF-200B	200 kg	-0.095 to -0.098	80 - 100	Steam / Thermal Oil	100 - 300 (VFD)	22 KW	3100 kg	3500 * 2500 * 2800	SUS304 Full Enclosure

Overcoming Core Defects in Banana Crisp Production

In commercial snack factories, plant managers consistently fight against oxidized batches and sticky output. This machine targets these exact processing pain points through advanced thermodynamic control.

No Sugar Caramelization (Browning Prevention): By frying below 100°C, the natural fructose in bananas does not undergo rapid Maillard reaction, resulting in a premium bright appearance.
Integrated Moisture Evaporation and Condensation: An oversized shell-and-tube condenser quickly captures evaporating fruit moisture, preventing vacuum pressure fluctuations and ensuring slices dry evenly without collapsing.
Minimized Oil Absorption (Under 15%): Traditional fryers leave chips soaked in oil. Our machine executes high-speed centrifugal de-oiling while still under vacuum, utilizing the pressure differential to forcefully extract surface and interstitial oil.
Continuous Oil Filtration System: Fine banana particulates are continuously removed from the frying medium, extending oil life and preventing burnt specks from attaching to the final chips.

Machine Structure and Engineering Principle

The vacuum low-temperature dehydration mechanism relies on a tightly synchronized loop of heating, vacuum generation, and fluid dynamics.

Initially, sliced bananas are loaded into the sanitary frying basket. The heavy-duty vacuum pump drops the chamber pressure to -0.098 MPa, effectively reducing the boiling point of water inside the fruit to approximately 40°C. Heat is rapidly transferred via a high-efficiency tube heat exchanger circulating steam or thermal oil. As the moisture aggressively flashes off, a dedicated cooling tower loop condenses the vapor to protect the vacuum pump. Once the crisping curve is achieved as parameterized on the Siemens HMI, the basket rises out of the oil pool. Without breaking the vacuum, the servo-driven shaft spins the basket up to 300 RPM. This dual-phase operation prevents the oil layer from penetrating the micro-pores of the banana slice when atmospheric pressure is suddenly restored.

Production Line Integration and Factory Layout

For a seamless process rhythm, this batch-type vacuum fryer serves as the thermal core of an automated turnkey layout. Prior to the frying stage, proper starch removal is critical. We recommend configuring an upstream Drum Bubble Washing Machine to gently rinse excess surface starch and enzymes without breaking the fragile banana slices. Following the frying and cooling sections, the highly brittle chips must be packaged with minimal mechanical abuse. Routing the chips into a multi-head Standard Vertical Weighing and Packaging System ensures precise bagging with nitrogen flushing, which locks out oxygen and extends the retail shelf life.

OEM Expertise and Global Plant Support

Investing in vacuum technology requires strict compliance and after-sales reliability.

International Safety Compliance: Engineered to CE and hygienic standards, featuring easily accessible washdown zones and food-grade welds.
Customized FAT Testing: We provide Factory Acceptance Testing using your specific banana varieties and maturity levels before shipping.
Turnkey Plant Deployment: From piping blueprints to on-site commissioning, our engineering teams set up the integration of boilers, cooling towers, and air compressors globally.
Robust Spare Parts Logistics: Standardized components and lifetime technical support ensure maximum OEE (Overall Equipment Effectiveness) for your facility.

Ready to upgrade your snack quality and reduce commercial oil waste? Contact our engineering team today to receive a detailed ROI calculation, custom plant layout design, and precise pricing customized for your banana chips vacuum frying project.

Frequently Asked Questions

What is the optimal ripeness of bananas for industrial vacuum frying?

For commercial vacuum frying, plantains or bananas at a mature but firm stage (yellow peel with green tips) are preferred. Overly ripe bananas have excessive soluble sugars which may cause slicing deformation, sticking during frying, and structural collapse.

How much oil is consumed per batch of banana chips?

Because the built-in centrifuge extracts excessive oil directly inside the vacuum chamber before atmospheric pressure is restored, the final oil retention is typically between 12% and 15%. This drastically cuts down on your factory's raw material oil costs compared to deep-frying.

Do I need to blanch the bananas before inserting them into the vacuum fryer?

A brief blanching process is recommended to inactivate polyphenol oxidase enzymes and ensure an evenly bright color, although the low-oxygen environment of the vacuum chamber already provides strong anti-oxidation protection.

What utility requirements are necessary to run this equipment?

You will need a reliable source of electric power for the motors and vacuum pump, an industrial steam boiler or thermal oil heater for the heat exchanger, and a water cooling tower system to condense the evaporated fruit moisture rapidly.

Can this same machine process other types of fruits and vegetables?

Yes, the control PLC allows you to store multiple recipe parameters. By adjusting the temperature window and vacuum duration, you can process jackfruit, apples, carrots, okra, and sweet potatoes in the exact same chamber.

How do you prevent the banana slices from sticking together in the basket?

The frying basket is designed with special compartment dividers and the system utilizes a gentle basket agitation mechanism during the early frying stage to keep individual sticky slices separated as their surface moisture evaporates.

How long does the installation and commissioning take for a turnkey layout?

For a standalone vacuum fryer unit, installation typically requires 7 to 10 days. If integrating a complete turnkey snack processing line, our engineers generally require 3 to 4 weeks on-site to synchronize the upstream washing, peeling, slicing, and downstream nitrogen packaging units.
