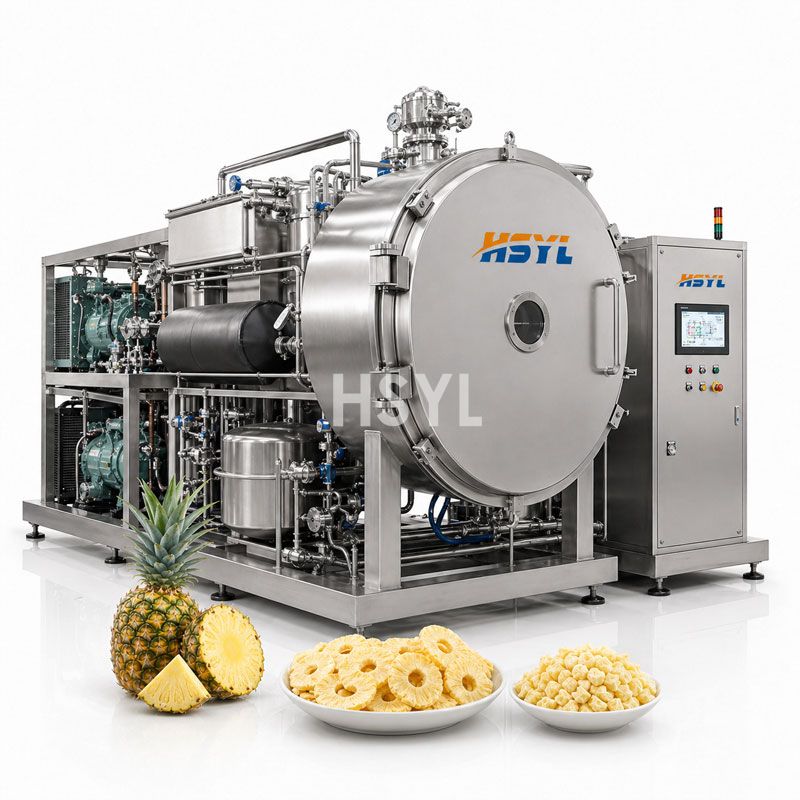

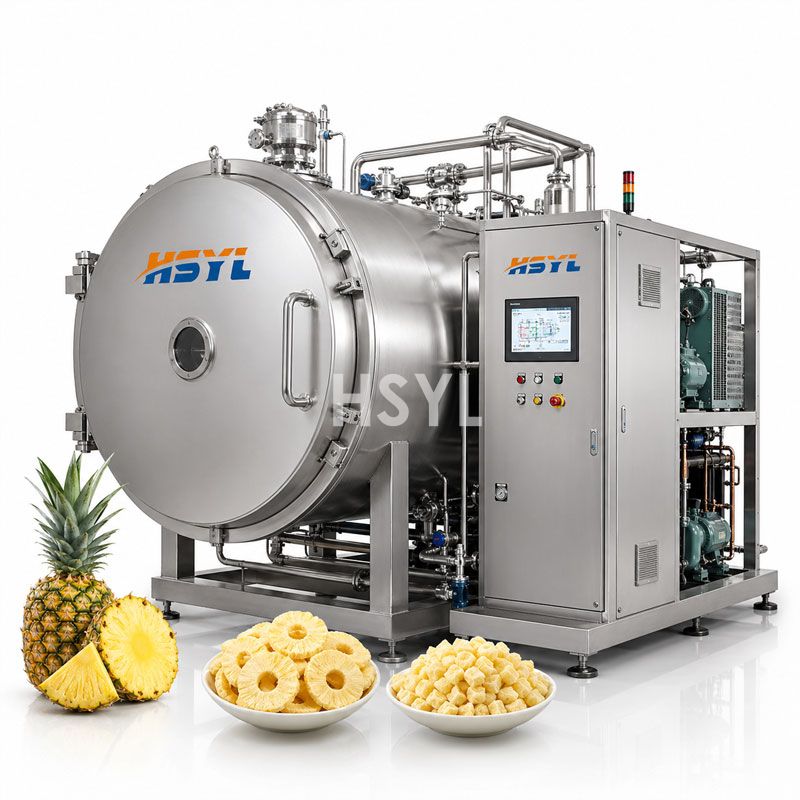

Industrial Pineapple Freeze Dryer: Defect-Proof Lyophilization Technology
Processing high-acid and highly fibrous tropical fruits presents unique mechanical and chemical challenges. Our industrial pineapple freeze dryer is specifically engineered to handle the harsh, corrosive nature of pineapple juice while preserving the fruit's delicate fibrous matrix. By isolating the sublimation front under ultra-deep vacuum and utilizing premium anti-corrosive vessel materials, this equipment ensures zero discoloration, total flavor retention, and zero risk of structural collapse, yielding a premium freeze-dried product for global ingredient buyers.
- Anti-Corrosive Build: The entire vacuum chamber, vapor trap, and product trays are constructed from high-grade SUS316L stainless steel to resist bromelain and citric acid degradation.
- Structural Preservation: Precise control of the vapor pressure curve prevents the tearing of pineapple fibers during rapid water extraction.
- High Payload Capability: Configurations available to process between 250 kg and 2,000 kg of frozen pineapple chunks per batch.
Equipment Specification Matrix
| Machine Model | Pineapple Slice Capacity (kg/batch) | Ultimate Vacuum (Pa) | Cooling Water Flow (m³/h) | Refrigerant Type | Tray Dimensions (mm) | Shelf Pitch (mm) |
|---|
| YLF-P250 | 250 | < 5 | 15 | R404A / R23 (Cascade) | 400 × 600 | 60 |
| YLF-P600 | 600 | < 5 | 35 | R404A / R23 (Cascade) | 400 × 600 | 60 |
| YLF-P1200 | 1200 | < 2 | 70 | R404A / R23 (Cascade) | 500 × 700 | 70 |
| YLF-P2000 | 2000 | < 2 | 110 | R404A / R23 (Cascade) | 500 × 700 | 70 |
Combating System Corrosion from High-Acid Tropics
Pineapples are notoriously acidic, possessing high concentrations of citric acid and active enzymes like bromelain. In standard freeze dryers built with lower-grade 304 stainless steel or improper welds, the prolonged exposure to acidic water vapor during the desorption phase inevitably leads to pitting corrosion on the cooling coils and chamber walls.
To eliminate this catastrophic equipment failure, the sublimation chamber, internal heating plates, and condenser trap of this machine are strictly fabricated from electropolished SUS316L stainless steel. Furthermore, all internal welds are seamlessly smoothed and verified via radiographic testing, removing microscopic crevices where acidic condensation could pool. This guarantees a safe, FDA-compliant processing environment with a dramatically extended operational lifespan.
Preserving the Fibrous Matrix of Pineapple Slices
Unlike smoothly textured fruits, pineapples have a rigid, interlocking fibrous network. If the pressure drops too rapidly or the shelf heat is applied inconsistently, the massive outward rush of vapor can physically rupture these fibers, resulting in cracked, dusty, and visually unappealing chips. This phenomenon also triggers enzymatic browning as broken cells oxidize.
The machine counteracts this through a continuously modulating vacuum valve and highly responsive silicone fluid heating system. The PLC monitors the exact temperature of the sublimation front inside the fruit. It gently ramps up the thermal input only when the chamber pressure confirms that the water molecules have successfully transitioned directly from solid ice to vapor, preserving the intact honeycomb structure of the pineapple ring.
Integration with Upstream Cutting and Quality Control
Achieving absolute batch consistency requires flawless raw material preparation. Irregular slice thickness creates uneven drying, forcing operators to extend the cycle time unnecessarily. For industrial facilities, we recommend integrating this lyophilizer downstream of highly calibrated preparation equipment, similar to the precision peeling and coring stations utilized in a standard pineapple can food production line.
Additionally, once the brittle freeze-dried pineapples exit the vacuum chamber, they are highly susceptible to contamination. Before final packaging, routing the product through a highly sensitive food x-ray foreign object detector guarantees that no fragmented stainless steel shards from upstream cutting blades or dense organic defects make it into the final retail pouch.
Centralized Plant Monitoring
Designed for large-scale operations, the electronic architecture of this freeze dryer operates beyond basic standalone controls. The control cabinet is equipped with Ethernet/IP interfaces, allowing the entire lyophilization process to be monitored from a centralized factory control room. Plant engineers can track real-time cooling water temperatures, compressor amperage, and vacuum pump oil pressure, triggering preventative maintenance alerts long before an unexpected shutdown occurs.
Ensure your tropical fruit processing line meets premium export quality. Reach out to our technical sales team to request mechanical blueprints, capacity sizing charts, or customized engineering configurations for your facility.
