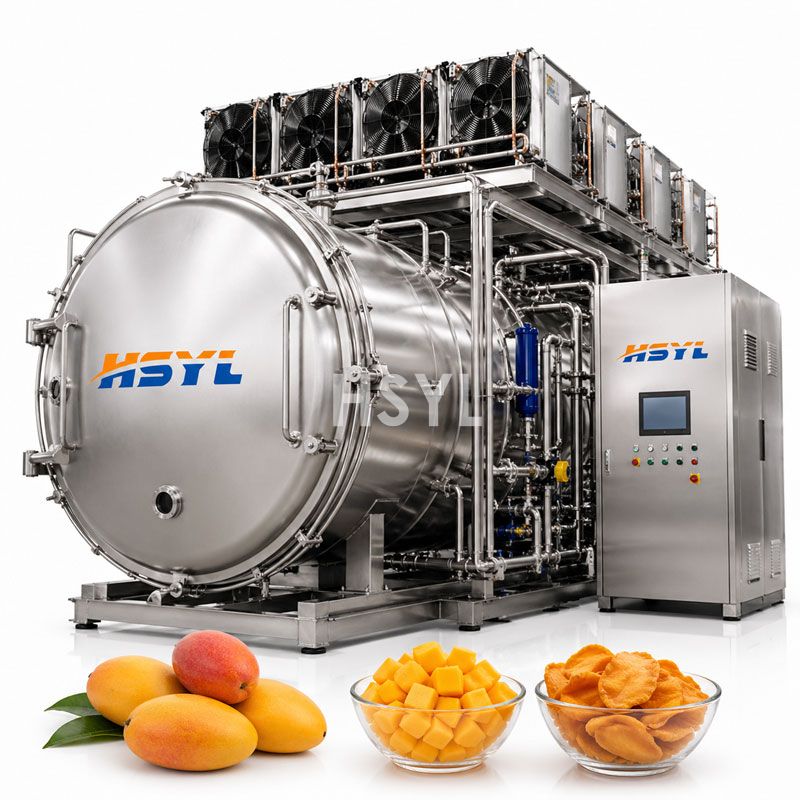

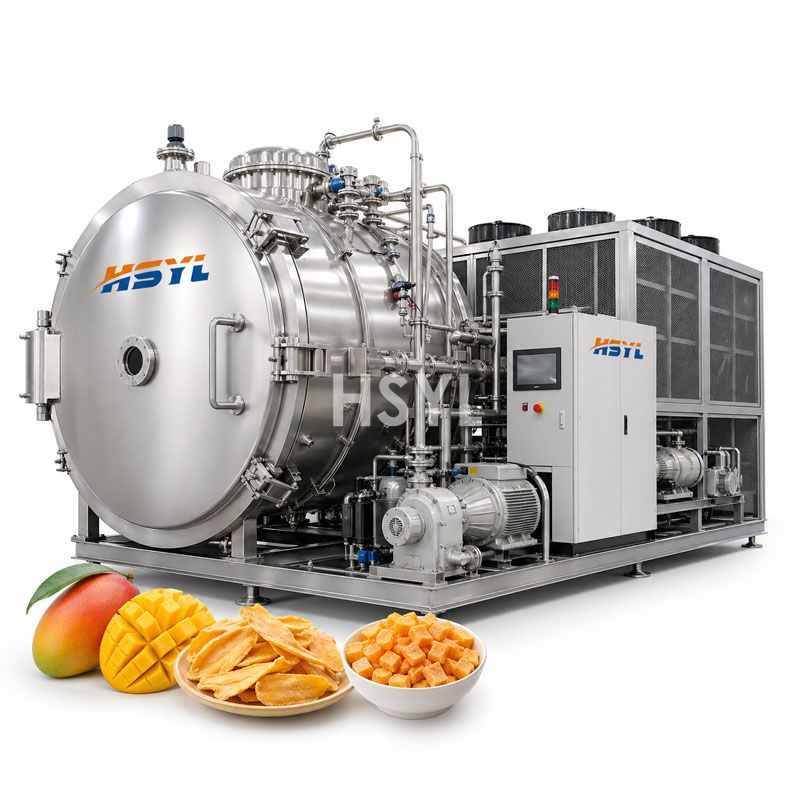

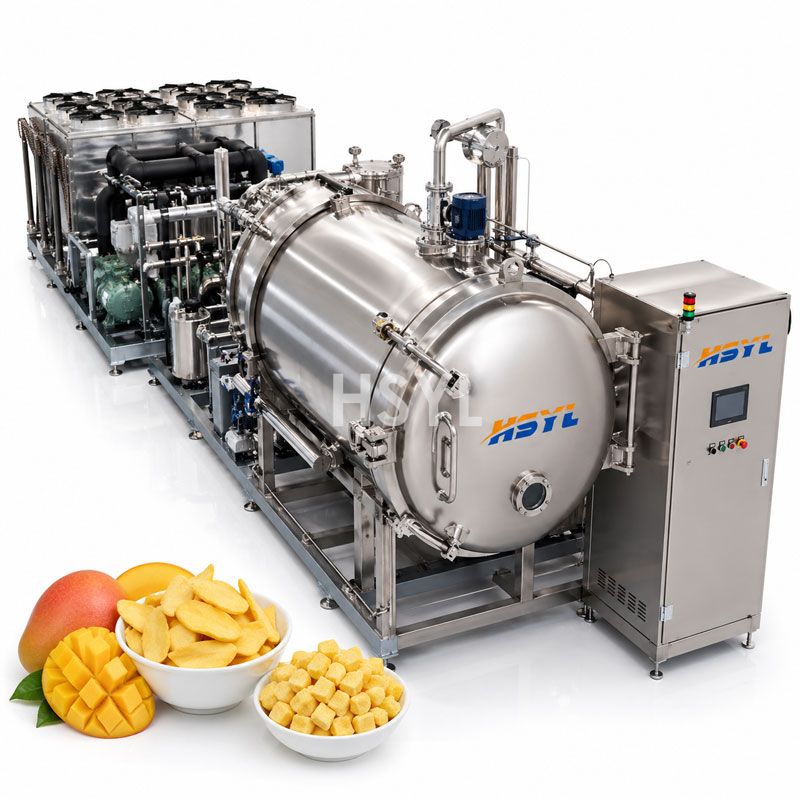

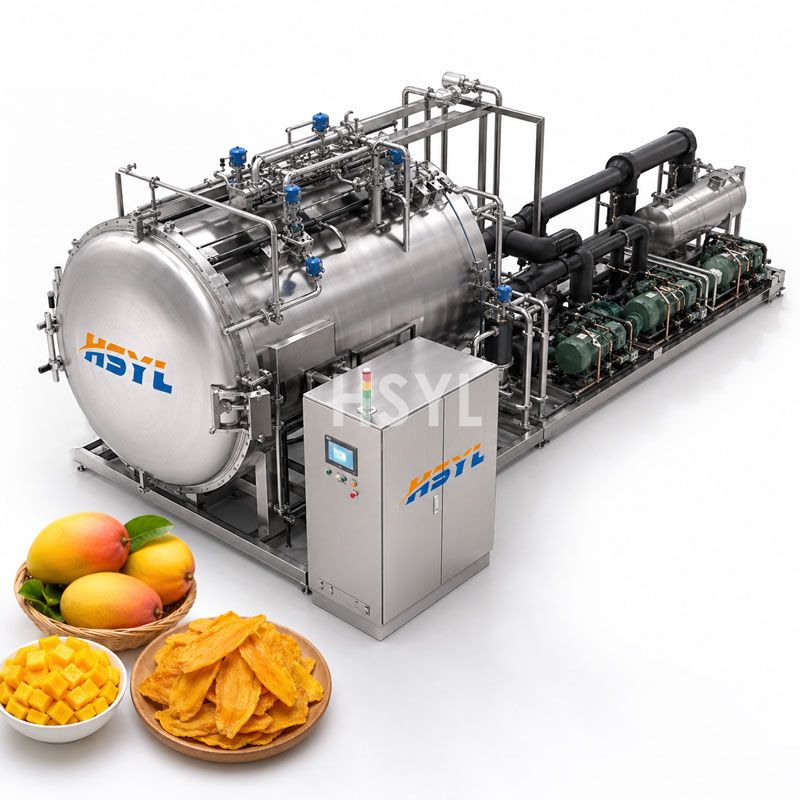

Industrial Mango Freeze Drying Machine: High-Yield Lyophilization Systems
Processing tropical fruits like mangoes requires strict control over sublimation parameters to prevent cellular collapse, sugar melting, and flavor degradation. Our industrial mango freeze drying machine is engineered to optimize the lyophilization cycle, utilizing advanced heat transfer fluid circulation and high-capacity vapor condensation. This ensures that the final freeze-dried mango slices retain maximum structural integrity, vibrant coloration, and nutritional value, meeting the strict standards of the international retail and bulk ingredient markets.
- Throughput Capacity: Configurable from 200 kg up to 2,000 kg raw mango input per batch.
- Sublimation Control: Multi-zone shelf heating with ±1°C precision prevents localized thermal damage to high-Brix fruit.
- Sanitary Design: Full SUS304 or SUS316L stainless steel product contact areas, conforming to strict hygiene protocols.
Technical Specifications
| Model Series | Fresh Mango Input (kg) | Condenser Target (℃) | Operating Vacuum (Pa) | Shelf Heating Zones | Defrosting Method | Installed Power (KW) | Chamber Material | Footprint (L×W×H mm) |
|---|
| YLF-300PRO | 300 | ≤ -65 | < 10 | 4 Independent | Hot Water / Vapor | 45 | SUS304 | 5200 × 2200 × 2600 |
| YLF-800PRO | 800 | ≤ -70 | < 10 | 6 Independent | Hot Water / Vapor | 95 | SUS304 / 316L | 7800 × 2600 × 2900 |
| YLF-1500PRO | 1500 | ≤ -75 | < 5 | 8 Independent | Hot Water / Vapor | 180 | SUS304 / 316L | 10500 × 3000 × 3300 |
| YLF-2500PRO | 2500 | ≤ -75 | < 5 | 10 Independent | Hot Water / Vapor | 280 | SUS304 / 316L | 13500 × 3500 × 3600 |
Overcoming Mango Lyophilization Defects
Mangoes exhibit uniquely high concentrations of natural sugars and moisture, which can cause severe operational issues such as eutectic melting or extended drying times during the primary drying phase. To address this, the machine utilizes an oversized refrigeration compressor array linked to a specialized cold trap coil pattern. This design captures massive volumes of water vapor rapidly, maintaining optimal vacuum levels without stalling the sublimation process.
Furthermore, managing the sugar matrix requires precise preliminary handling. Before entering the freeze dryer, raw mangoes must be thoroughly cleaned and prepped. Processors typically utilize an upstream drum bubble washing machine to ensure complete surface decontamination without bruising the delicate fruit tissue, creating a stable baseline for downstream peeling, slicing, and freezing steps.
Advanced Vacuum Chamber and Heat Transfer Mechanics
The core structural design of this lyophilizer relies on an optimized thermal transfer mechanism. Traditional conductive heating often results in uneven drying across different tray levels. This equipment employs forced circulation of a specialized heat transfer fluid through the interior channels of hollow heating shelves. This guarantees uniform temperature distribution across all product trays.
The vacuum chamber is strictly tested for leak rates, ensuring the triple-point of water is sustained flawlessly. High-grade rotary vane pumps combined with Roots blowers pull the chamber down to operational vacuum rapidly, preventing any partial thawing of the pre-frozen mango slices before sublimation begins. The integrated PLC monitors the vapor pressure curve and automatically shifts from primary bulk sublimation to secondary desorption drying based on real-time sensor feedback.
Turnkey Integration in Tropical Fruit Processing Lines
For industrial plant managers, standalone equipment operation generates logistical bottlenecks. This freeze dryer is built for seamless integration into larger continuous or semi-continuous processing workflows. The rail-and-trolley tray loading system minimizes transfer time from the blast freezer into the vacuum chamber.
Once the lyophilization cycle is complete and the chamber is repressurized with dry nitrogen, the highly hygroscopic freeze-dried mangoes must be immediately sealed to prevent moisture reabsorption from the ambient air. To secure the final product shelf life, the output interfaces smoothly with a standard integrated weighing and packaging machine, operating under controlled humidity environments to deliver precise dosing into multi-layer composite pouches or nitrogen-flushed bulk bags.
Global Compliance and Delivery Standards
Engineering safety and regulatory compliance are non-negotiable for large-scale export facilities. Our manufacturing protocols align with CE, internal QA, and international food safety requirements. The pressure vessels undergo rigorous x-ray weld inspections and hydrostatic testing prior to dispatch.
We provide comprehensive Factory Acceptance Testing (FAT), detailed operational manuals, and global commissioning services to ensure your production line hits targeted capacity parameters from day one.
To request a tailored layout drawing, calculate utility consumption ROI, or discuss specific lyophilization recipes for your mango variants, please contact our engineering team to schedule a technical evaluation.
