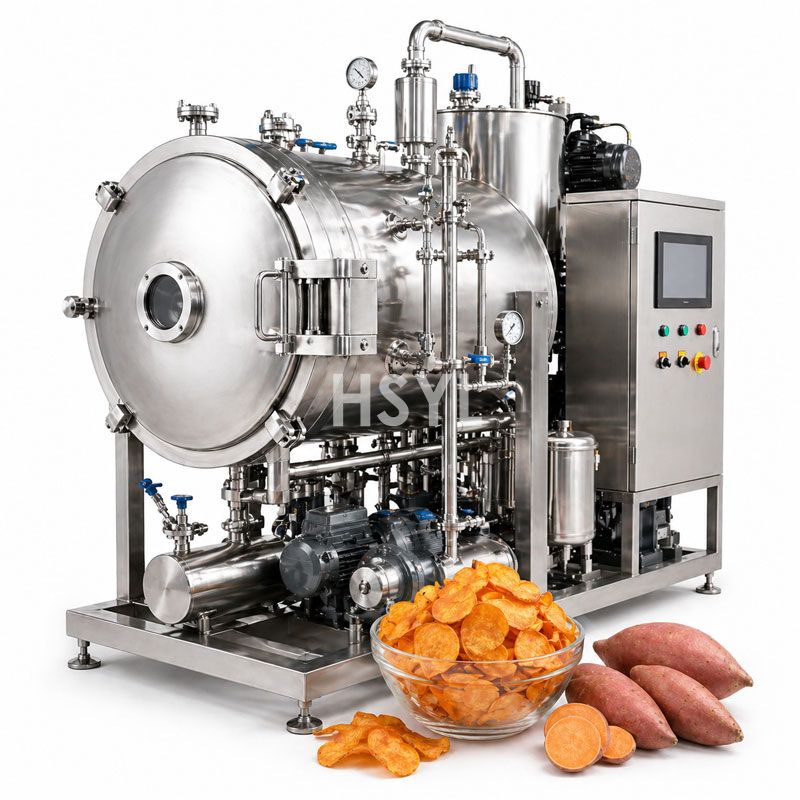

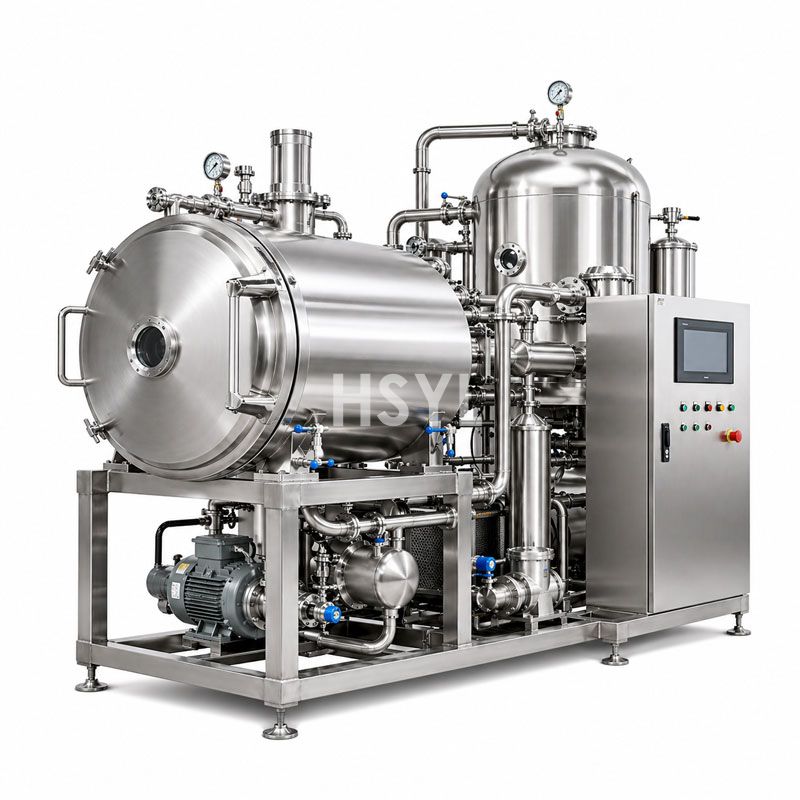

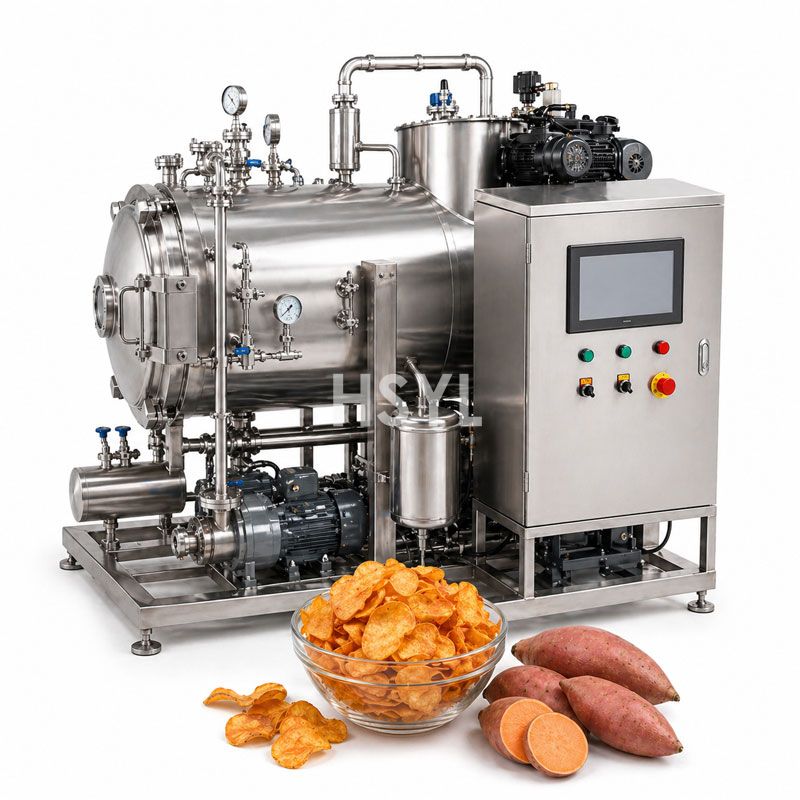

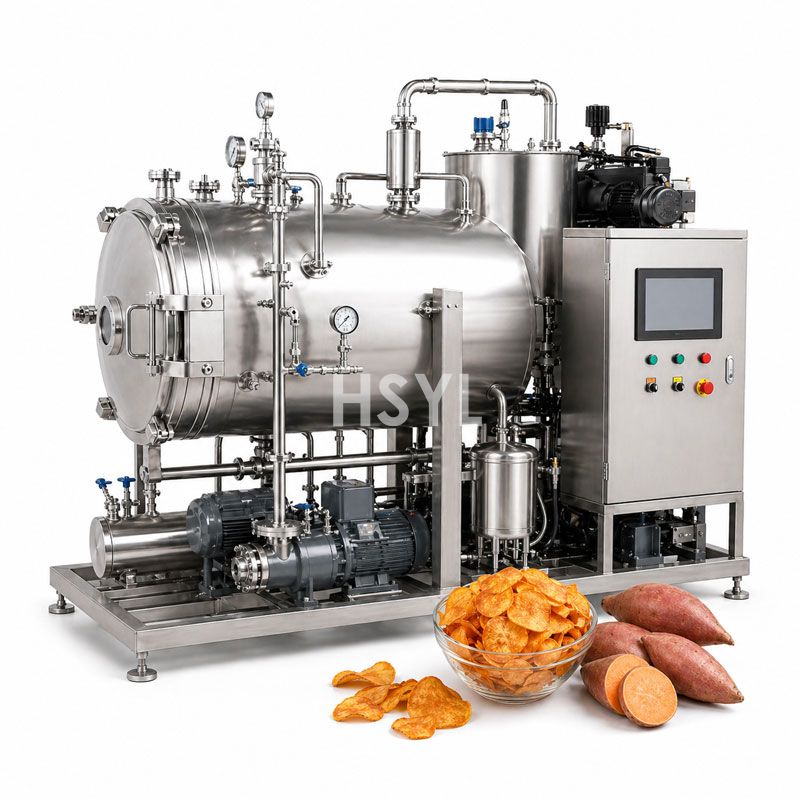

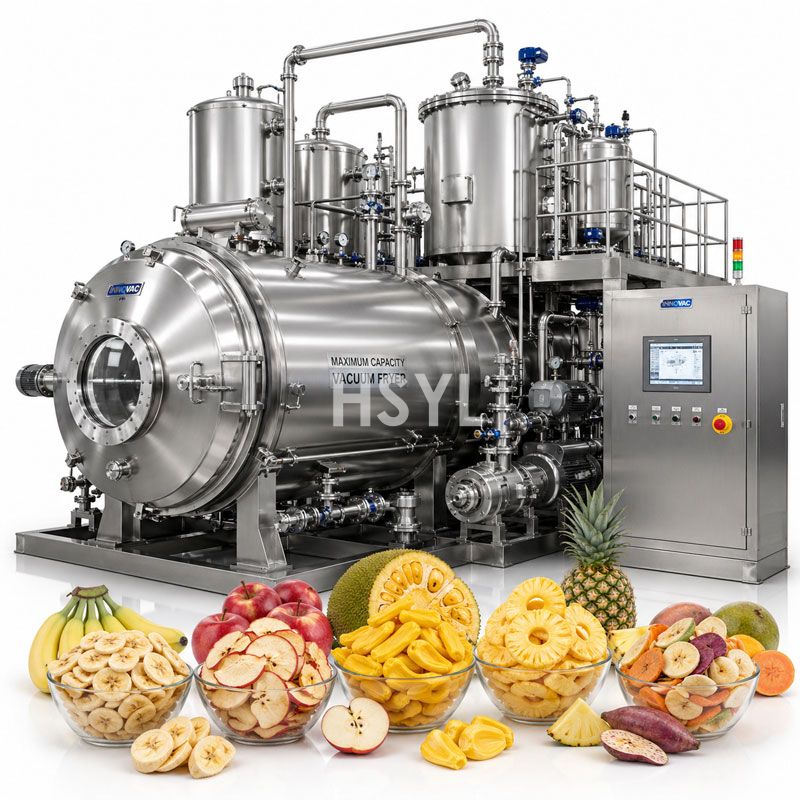

Commercial Sweet Potato Vacuum Fryer Machinery

Detailed Equipment Introduction

Gain in-depth insights into Sweet Potato Vacuum Fryer equipment’s working principles, application scenarios, and technical highlights.

Why Sweet Potatoes Require Specialized Dehydration

Root vegetable snacks represent a rapidly expanding sector in the global savory foods market. However, when transitioning to sweet potato chips, facility operators frequently discover that standard deep-fat fryers produce dense, hardened, and heavily soaked products with severe browning. Recognizing this performance gap, our engineering team has designed a vacuum dehydration system tailored explicitly for dense, high-starch tubers. By dropping the chamber pressure, this machine initiates aggressive moisture evaporation well below the sugar caramelization threshold, ensuring a delicate, airy crunch rather than a jaw-breaking hard texture.

Solving the Root Vegetable Starch Dilemma

The primary manufacturing bottleneck for sweet potatoes is their massive starch content combined with high moisture. When loaded into a frying basket, overlapping slices immediately agglomerate (clump together) into an uncookable mass. Our equipment overcomes this through a combination of mechanical and fluid engineering.

The primary frying basket incorporates a customized spacing matrix and a programmable low-shock rotation sequence. During the critical initial minutes when surface starch gelatinizes, the gentle tumbling action prevents the sweet potato slices from fusing. The high-velocity oil circulation pump continuously sweeps the separated slices, stripping away the moisture envelope and pulling free-floating starch particles toward the external filter bank before they can carbonize onto the heat exchanger.

Sweet Potato Fryer Industrial Parameters

Model Identifier	Batch Holding Capacity (kg)	Ideal Slice Thickness (mm)	De-Oiling G-Force / RPM	Oil Volume Reserve (Liters)	Vacuum System (-MPa)	Total Power (KW)	Outer Footprint (mm)
VF-SP150	150 kg	1.5 - 2.5 mm	Adjustable up to 300 RPM	600 L	-0.096 to -0.098	18 KW	3100 * 2300 * 2600
VF-SP300	300 kg	1.5 - 2.5 mm	Adjustable up to 300 RPM	1100 L	-0.096 to -0.098	28 KW	4000 * 2800 * 3000

Turnkey Root Vegetable Line Flow

Deploying a vacuum fryer without the proper upstream starch management will bottleneck your throughput. For maximum OEE (Overall Equipment Effectiveness), we firmly recommend a fully integrated raw material approach. The raw tubers must first enter a heavy-duty Screw Potato Peeling Washing Machine utilizing abrasive rollers configured for irregular sweet potato shapes. Following precise slicing, rigorous cold-water starch washing and blanching are mandatory. By embedding this vacuum fryer into an automated, continuous Potato Chips Processing Line, factory managers eliminate manual transfer times, prevent premature starch oxidation, and guarantee a steady feed rate into the vacuum chamber.

Oil Cost and Filter Longevity

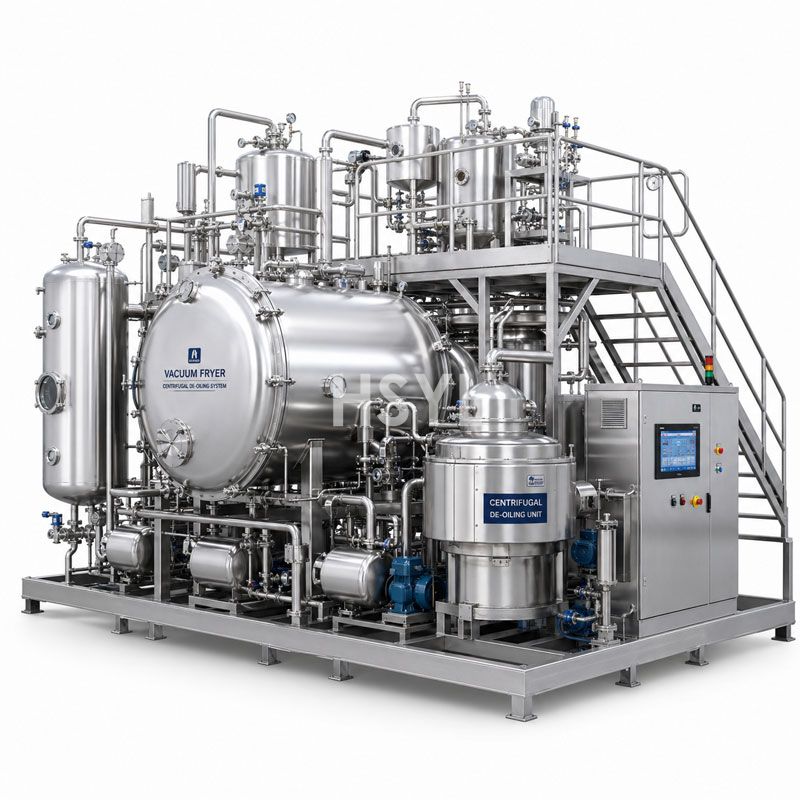

Profit margins in root vegetable processing are tightly linked to oil consumption. Atmospheric fryers typically demand frequent oil dumping due to rapid free-fatty-acid (FFA) buildup and oxidation. By keeping the cooking process sealed in an oxygen-deprived vacuum (-0.098 MPa) and at lower temperatures (under 100°C), the degradation of the frying oil is practically halted. Furthermore, the high G-force centrifugal de-oiling step pulls up to 85% of the absorbed oil out of the chips before atmospheric pressure is restored, ensuring the fat content in the final retail product remains exceptionally low.

Custom OEM B2B Manufacturing

We do not supply generic off-the-shelf catering equipment; we build industrial infrastructure.

Custom Basket Geometries: Designed specifically for your target slice diameter and thickness to optimize payload density.
Utility Integration: We adapt the heat exchanger manifolds for your existing factory steam boilers, thermal oil networks, or electric grids.
Data and Connectivity: The control hierarchy utilizes Siemens or Omron architectures, equipped with Ethernet modules for central factory MES (Manufacturing Execution System) monitoring.

Submit your anticipated hourly tonnage to our technical department. We will return a highly detailed blueprint including utility consumption estimates, auxiliary equipment recommendations, and accurate ex-works pricing for your sweet potato crisp project.

Frequently Asked Questions

How do you prevent sweet potato slices from sticking together in clumps?

Agglomeration is prevented through a three-step intervention: mandatory upstream cold-water washing to remove surface starch, programmable rotational agitation of the frying basket during the initial immersion phase, and high-velocity oil circulation that physically separates the slices as their moisture vaporizes.

What slice thickness is most efficient for this vacuum fryer?

For optimal thermal penetration and the most satisfying crunch, we engineer our basket spacing and processing recipes to target sweet potato slices cut between 1.5 mm and 2.5 mm in thickness. Thicker cuts will require proportionally longer vacuum holding cycles.

Does the system preserve the natural purple or orange color of the tubers?

Yes, operating in a deep vacuum practically eliminates the presence of oxygen, while the low processing temperature (below 100°C) prevents the destruction of heat-sensitive pigments like anthocyanins (purple) and beta-carotene (orange), resulting in an extremely vibrant final chip.

How often should the cooking oil be filtered when processing sweet potatoes?

The system is equipped with an integrated, continuous bypass oil filtration circuit. It operates in real-time alongside the vacuum pump, trapping micro-starch particles on the fly, which drastically extends the interval between total oil changeovers compared to batch atmospheric frying.

Is pre-blanching necessary for purple sweet potatoes?

While vacuum frying already mitigates browning, a brief hot water blanching step is still highly recommended for sweet potatoes. Blanching gels the residual surface starch and permanently arrests cellular enzymes, which standardizes the texture and accelerates the subsequent vacuum dehydration phase.
